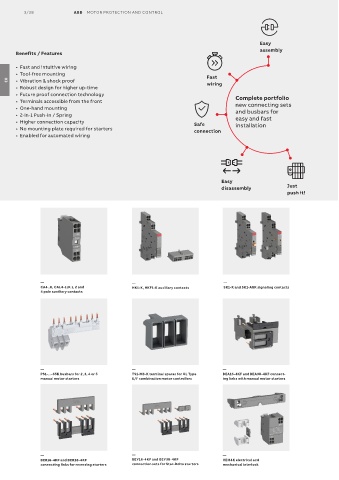

3/38 ABB MOTOR PROTECTION AND CONTROL

Easy
assembly
Benefits / Features

• Fast and intuitive wiring
• Tool-free mounting Fast
• Vibration & shock proof wiring
03
• Robust design for higher up-time
• Future proof connection technology Complete portfolio
• Terminals accessible from the front new connecting sets
• One-hand mounting and busbars for
• 2-in-1 Push-in / Spring easy and fast
• Higher connection capacity Safe installation
• No mounting plate required for starters connection
• Enabled for automated wiring

Easy
disassembly Just
push it!

— — —
CA4..K, CAL4-11K 1, 2 and HK1-K, HKF1-K auxiliary contacts SK1-K and SK1-ARK signaling contacts
4 pole auxiliary contacts

— — —
PS1-...-65K busbars for 2, 3, 4 or 5 TS1-M3-K terminal spacer for UL Type BEA16-4KF and BEA38-4KF connect-
manual motor starters E/F combination motor controllers ing links with manual motor starters

— — —
BER16-4KF and BER38-4KF BEY16-4KF and BEY38-4KF VEM4K electrical and
connecting links for reversing starters connection sets for Star-Delta starters mechanical interlock
