1/15 ABB MOTOR PROTECTION AND CONTROL
01
—

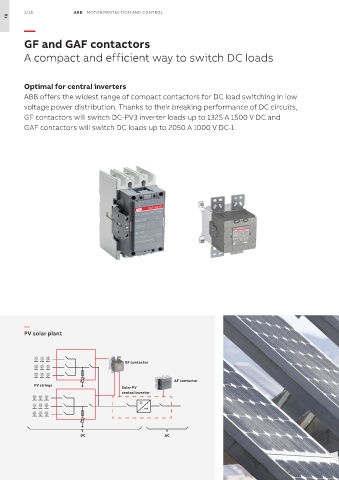

GF and GAF contactors

A compact and efficient way to switch DC loads

Optimal for central inverters
ABB offers the widest range of compact contactors for DC load switching in low
voltage power distribution. Thanks to their breaking performance of DC circuits,

GF contactors will switch DC-PV3 inverter loads up to 1325 A 1500 V DC and
GAF contactors will switch DC loads up to 2050 A 1000 V DC-1.

—
PV solar plant

GF contactor

AF contactor
PV strings
Solar PV
central inverter

DC AC
