3/206 ABB MOTOR PROTECTION AND CONTROL

—

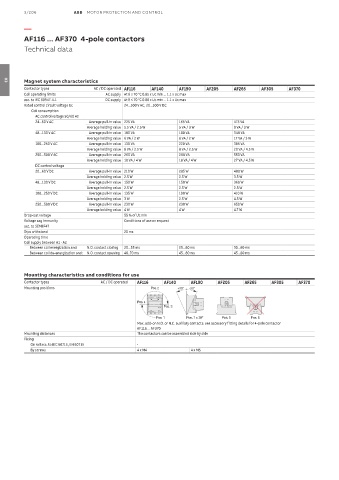

AF116 ... AF370 4-pole contactors
Technical data

Magnet system characteristics
03
Contactor types AC / DC operated AF116 AF140 AF190 AF205 AF265 AF305 AF370
Coil operating limits AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
acc. to IEC 60947-4-1 DC supply At θ ≤ 70 °C 0.80 x Uc min ... 1.1 x Uc max
Rated control circuit voltage Uc 24...500 V AC, 20...500 V DC
Coil consumption
AC control voltage 50/60 Hz
24...60 V AC Average pull-in value 225 VA 165 VA 475 VA
Average holding value 5.5 VA / 2.5 W 5 VA / 3 W 9 VA / 3 W
48...130 V AC Average pull-in value 180 VA 180 VA 340 VA
Average holding value 6 VA / 2 W 6 VA / 2 W 17 VA / 3 W
100...250 V AC Average pull-in value 130 VA 220 VA 385 VA
Average holding value 8 VA / 2.5 W 8 VA / 2.5 W 20 VA / 4.5 W
250...500 V AC Average pull-in value 260 VA 260 VA 550 VA
Average holding value 18 VA / 4 W 18 VA / 4 W 27 VA / 4.5 W
DC control voltage
20...60 V DC Average pull-in value 210 W 205 W 400 W
Average holding value 2.5 W 2.5 W 3.5 W
48...130 V DC Average pull-in value 150 W 150 W 360 W
Average holding value 2.5 W 2.5 W 2.5 W
100...250 V DC Average pull-in value 135 W 190 W 410 W
Average holding value 3 W 2.5 W 4.5 W
250...500 V DC Average pull-in value 230 W 230 W 650 W
Average holding value 4 W 4 W 4.7 W
Drop-out voltage 55 % of Uc min
Voltage sag immunity Conditions of use on request
acc. to SEMI F47
Dips withstand 20 ms
Operating time
Coil supply between A1 - A2
Between coil energization and: N.O. contact closing 20...55 ms 25...60 ms 30...60 ms
Between coil de-energization and: N.O. contact opening 40..70 ms 45...80 ms 45...80 ms

Mounting characteristics and conditions for use
Contactor types AC / DC operated AF116 AF140 AF190 AF205 AF265 AF305 AF370
Mounting positions Pos. 2 +30° -30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Max. add-on N.O. or N.C. auxiliary contacts: see accessory fitting details for 4-pole contactor
AF116 ... AF370
Mounting distances The contactors can be assembled side by side
Fixing
On rail acc. to IEC 60715, EN 60715 -
By screws 4 x M4 4 x M5
