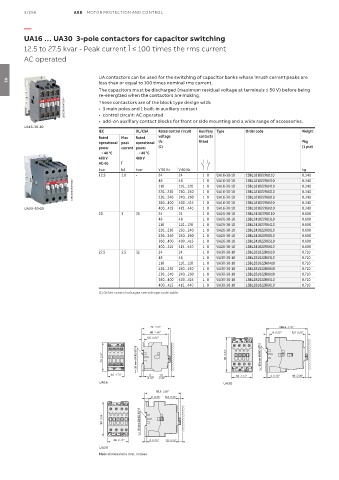

Page 332 - ABB_Motor _Protection_and_Control_catalogue_20221216

3/256 ABB MOTOR PROTECTION AND CONTROL

—
UA16 … UA30 3-pole contactors for capacitor switching

12.5 to 27.5 kvar - Peak current Î ≤ 100 times the rms current
AC operated

UA contactors can be used for the switching of capacitor banks whose inrush current peaks are
less than or equal to 100 times nominal rms current.
03
The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being
re-energized when the contactors are making.
1SBC591694F0304 These contactors are of the block type design with:
• 3 main poles and 1 built-in auxiliary contact
• control circuit: AC operated
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
UA16-30-10
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated Max Rated voltage contacts
operational peak operational Uc fitted Pkg
power current power (1) (1 pce)
θ ≤ 40 °C θ ≤ 40 °C
400 V 480 V
AC-6b Î
kvar kA kvar V 50 Hz V 60 Hz kg
12.5 1.8 - 24 24 1 0 UA16-30-10 1SBL181022R8110 0.340
0.340
48
1SBL181022R8310
UA16-30-10
48
1 0
1SBC580093F0303 110 110…120 1 0 UA16-30-10 1SBL181022R8410 0.340
UA16-30-10
220…230
1 0
230…240
0.340
1SBL181022R8010
230…240
UA16-30-10
0.340
380…400 240…260 1 0 UA16-30-10 1SBL181022R8810 0.340
1SBL181022R8510
400…415
1 0
UA30-30-10 400…415 415…440 1 0 UA16-30-10 1SBL181022R8610 0.340
20 3 25 24 24 1 0 UA26-30-10 1SBL241022R8110 0.600
48 48 1 0 UA26-30-10 1SBL241022R8310 0.600
110 110…120 1 0 UA26-30-10 1SBL241022R8410 0.600
220…230 230…240 1 0 UA26-30-10 1SBL241022R8010 0.600
230…240 240…260 1 0 UA26-30-10 1SBL241022R8810 0.600
380…400 400…415 1 0 UA26-30-10 1SBL241022R8510 0.600
400…415 415…440 1 0 UA26-30-10 1SBL241022R8610 0.600
27.5 3.5 32 24 24 1 0 UA30-30-10 1SBL281022R8110 0.710
48 48 1 0 UA30-30-10 1SBL281022R8310 0.710
110 110…120 1 0 UA30-30-10 1SBL281022R8410 0.710
220…230 230…240 1 0 UA30-30-10 1SBL281022R8010 0.710
230…240 240…260 1 0 UA30-30-10 1SBL281022R8810 0.710
380…400 400…415 1 0 UA30-30-10 1SBL281022R8510 0.710
400…415 415…440 1 0 UA30-30-10 1SBL281022R8610 0.710
(1) Other control voltages see voltage code table.
74 2.91" 108.3 4.26"
68 2.68" 9 0.35" 6.3 0.25"
5.5 0.22"
74 2.91" 35 mm EN/IEC 60715 90 3.54" 35 mm EN/IEC 60715

44 1.73" 4 10 54 2.13" 4 0.16" 10 0.39"
0.16" 0.39"
UA16 UA30
93.6 3.69"
9 0.35" 6.3 0.25"

90 3.54" 35 mm EN/IEC 60715

54 2.13" 4 0.16" 10 0.39"
UA26
Main dimensions mm, inches
