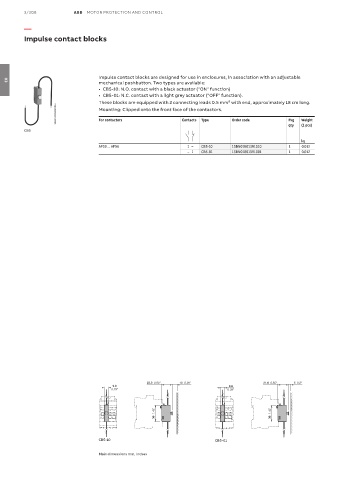

Page 384 - ABB_Motor _Protection_and_Control_catalogue_20221216

3/308 ABB MOTOR PROTECTION AND CONTROL

—

Impulse contact blocks

Impulse contact blocks are designed for use in enclosures, in association with an adjustable
mechanical pushbutton. Two types are available:
03
• CB5-10: N.O. contact with a black actuator ("ON" function)
• CB5-01: N.C. contact with a light grey actuator ("OFF" function).
These blocks are equipped with 2 connecting leads 0.5 mm² with end, approximately 18 cm long.
1SBC100039V0014 Mounting: Clipped onto the front face of the contactors.

Order code
Pkg
Type
Contacts
For contactors
qty Weight
(1 pce)
CB5
kg
AF09 ... AF96 1 – CB5-10 1SBN010013R1010 1 0.012
– 1 CB5-01 1SBN010013R1001 1 0.012

22.9 0.90" 10 0.39" 21.6 0.85" 5 0.2"
9.8 9.8
0.39" 0.39"

36 1.42" 36 1.42"

CB5-10 CB5-01

Main dimensions mm, inches
