3/422 ABB MOTOR PROTECTION AND CONTROL

—

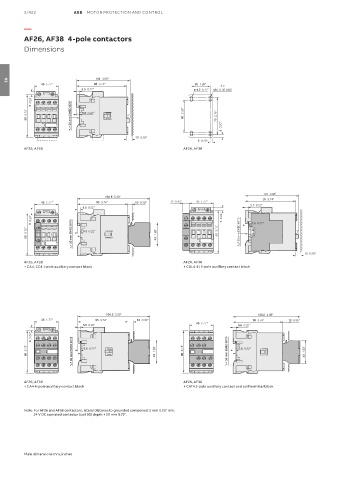

AF26, AF38 4-pole contactors
Dimensions

101 3.98" 101 3.98"
45 1.77" 45 1.77" 95 3.74" 95 3.74" 35 1.38" 35 1.38"
03
2 x 2 x
ø 4.2
5.5 0.22" 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 60 2.36" 70 2.76" 70 2.76"

5 0.20" 5 0.20"

10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF26, AF38 AF26, AF38

101 3.98"
134.5 5.30" 95 3.74"
45 1.77" 95 3.74" 10 0.39" 12 0.47" 45 1.77"
5.5 0.22"
5.5 0.22"
6 0.24" 6 0.24" 5.5 0.22"

80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 80 3.15" 35 mm EN/IEC 60715

10 0.39"
AF26, AF38 AF26, AF38
+ CA4, CC4 1-pole auxiliary contact block + CAL4-11 2-pole auxiliary contact block

134.5 5.30" 126.5 4.98"
45 1.77" 95 3.74" 10 0.39" 95 3.74" 10 0.39"
45 1.77"
5.5 0.22" 5.5 0.22"
6 0.24"

80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69"

AF26, AF38 AF26, AF38
+ CA4 4-pole auxiliary contact block + CAT4 2-pole auxiliary contact and coil terminal block

Note: For AF26 and AF38 contactors, lateral distance to grounded component 2 mm 0.08" min.
24 V DC operated contactor (coil 30) depth + 20 mm 0.79″.

Main dimensions mm, inches
