3/430            ABB  MOTOR PROTECTION AND CONTROL

          —

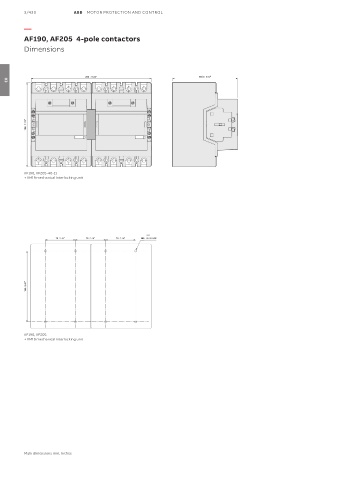

          AF190, AF205  4-pole contactors
          Dimensions




                               280  11.02"                             152.5  6.00"
   03






          196  7.72"










          AF190, AF205-40-11
          + VM19 mechanical interlocking unit










                                                    4 X
                     70  2.76"  70  2.76"  70  2.76"  M5  10-24 UNC








          165  6.50"









          AF190, AF205
          + VM19 mechanical interlocking unit























          Main dimensions mm, inches
