3/456 ABB MOTOR PROTECTION AND CONTROL

—

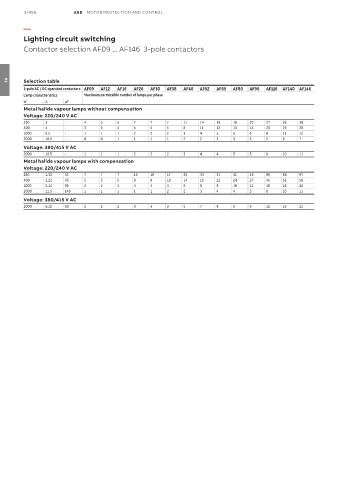

Lighting circuit switching
Contactor selection AF09 ... AF146 3-pole contactors

Selection table
03
3-pole AC / DC operated contactors AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146
Lamp characteristics Maximum permissible number of lamps per phase
W A μF
Metal halide vapour lamps without compensation
Voltage: 220/240 V AC
250 3 - 4 5 5 7 7 7 11 14 16 18 20 27 33 38
400 4 - 3 3 4 5 5 5 8 11 12 13 15 20 25 28
1000 9.5 - 1 1 1 2 2 2 3 4 5 5 6 8 11 12
2000 16.5 - 0 0 1 1 1 1 2 2 3 3 3 5 6 7
Voltage: 380/415 V AC
2000 10.5 - 1 1 1 2 2 2 3 4 4 5 5 8 10 11
Metal halide vapour lamps with compensation
Voltage: 220/240 V AC
250 1.32 33 7 7 7 15 16 17 25 33 37 41 45 69 86 97
400 2.22 45 5 5 5 9 9 10 14 19 22 24 27 41 51 58
1000 5.14 85 2 2 3 4 4 4 6 8 9 10 11 18 22 25
2000 11.5 148 1 1 1 1 1 2 2 3 4 4 5 8 10 11
Voltage: 380/415 V AC
2000 6.10 60 2 2 2 3 3 3 5 7 8 9 9 15 19 21
