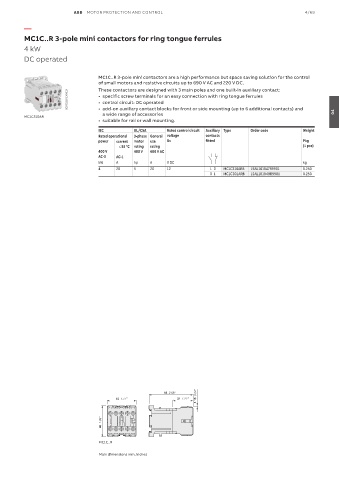

ABB MOTOR PROTECTION AND CONTROL 4/69

—
MC1C..R 3-pole mini contactors for ring tongue ferrules

4 kW
DC operated

MC1C..R 3-pole mini contactors are a high performance but space saving solution for the control
of small motors and resistive circuits up to 690 V AC and 220 V DC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211011V0019 • specific screw terminals for an easy connection with ring tongue ferrules
• control circuit: DC operated
• add-on auxiliary contact blocks for front or side mounting (up to 6 additional contacts) and
a wide range of accessories 04
MC1C310AR
• suitable for rail or wall mounting.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ ≤ 55 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V DC kg
4 20 5 20 12 1 0 MC1C310ARB 1SAL101847R9901 0.250
0 1 MC1C301ARB 1SAL101848R9901 0.250

1.15 0.04’’
68 2.68’’
45 1.77’’ 31 1.22’’

48 1.89’’

MC1C..R

Main dimensions mm, inches
