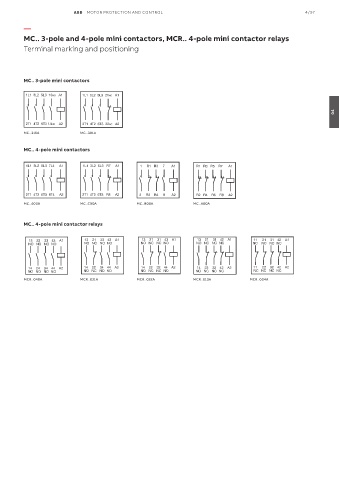

ABB MOTOR PROTECTION AND CONTROL 4/97

—
MC.. 3-pole and 4-pole mini contactors, MCR.. 4-pole mini contactor relays

Terminal marking and positioning

MC.. 3-pole mini contactors

1L1 3L2 5L3 13NO A1 1L1 3L2 5L3 21NC A1

04

2T1 4T2 6T3 14NO A2 2T1 4T2 6T3 22NC A2
MC..310A MC..301A
MC..310A
MC..301A
MC.. 4-pole mini contactors

1L1 3L2 5L3 7L4 A1 1L1 3L2 5L3 R7 A1 1 R1 R3 7 A1 R1 R3 R5 R7 A1

2T1 4T2 6T3 8T4 A2 2T1 4T2 6T3 R8 A2 2 R2 R4 8 A2 R2 R4 R6 R8 A2
MC..400A MC..C00A MC..B00A MC..A00A
MC..B00A
MC..C00A
MC..440A
MC..A00A
MC.. 4-pole mini contactor relays

13 23 33 43 A1 13 21 33 43 A1 13 21 31 43 A1 13 21 31 42 A1 11 21 31 42 A1
NO NO NO NO NO NC NO NO NO NC NC NO NO NC NC NC NC NC NC NC

14 24 34 44 A2 14 22 34 44 A2 14 22 32 44 A2 14 22 32 42 A2 11 22 32 42 A2
NO NO NO NO NO NC NO NO NO NC NC NO NO NC NC NC NC NC NC NC
MCR..022A
MCR..004A
MCR..013A
MCR..031A
MCR..040A
MCR..040A MCR..031A MCR..022A MCR..013A MCR..004A
