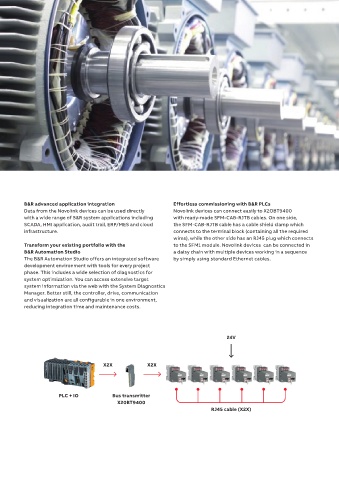

B&R advanced application integration Effortless commissioning with B&R PLCs
Data from the Novolink devices can be used directly Novolink devices can connect easily to X2OBT9400
with a wide range of B&R system applications including with ready-made SFM-CAB-RJTB cables. On one side,
SCADA, HMI application, audit trail, ERP/MES and cloud the SFM-CAB-RJTB cable has a cable shield clamp which
infrastructure. connects to the terminal block (containing all the required
wires), while the other side has an RJ45 plug which connects
Transform your existing portfolio with the to the SFM1 module. Novolink devices can be connected in
B&R Automation Studio a daisy chain with multiple devices working in a sequence
The B&R Automation Studio offers an integrated software by simply using standard Ethernet cables.
development environment with tools for every project
phase. This includes a wide selection of diagnostics for
system optimization. You can access extensive target
system information via the web with the System Diagnostics
Manager. Better still, the controller, drive, communication
and visualization are all configurable in one environment,
reducing integration time and maintenance costs.

24V

X2X X2X

PLC + IO Bus transmitter
X20BT9400
RJ45 cable (X2X)
