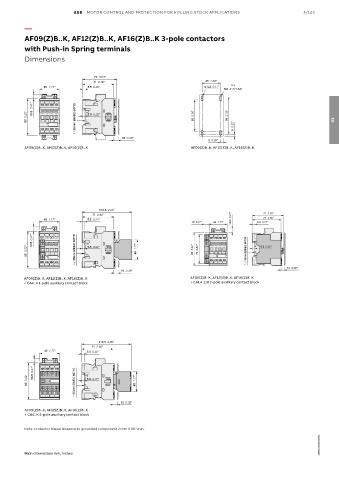

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/123

—
AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K 3-pole contactors

with Push-in Spring terminals
Dimensions

77 3.03" 77 3.03"
71 2.80" 35 1.38"
45 1.77" 71 2.80" 2 x
45 1.77" 5.5 0.22" ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC
6 0.24"
10.5 0.41" 5.5 0.22"
82 3.22" 80 3.15" 35mm EN/EC 60715 5.5 0.22" 35 mm EN/IEC 60715 60 2.36" 70 2.76" 5 0.20" 03

10 0.39" 10 0.39"
5 0.20"
AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K

110.5 4.35"
71 2.80" 77 3.03"
45 1.77" 5.5 0.22" 10.5 0.41" 71 2.80"
12 0.47" 45 1.77" 5.5 0.22"
10.5 0.41"

82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77" 82 3.22" 72 2.83" 35mm EN/EC 60715 5.5 0.22"

10 0.39"
10 0.39"
AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K
+ CA4..K 1-pole auxiliary contact block + CAL4-11K 2-pole auxiliary contact block

110.5 4.35"
71 2.80"
45 1.77" 5.5 0.22"

10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77"

10 0.39"
AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K
+ CA4..K 4-pole auxiliary contact block

Note: contactor lateral distance to grounded component 2 mm 0.08" min.
1SBC100623S0201

Main dimensions mm, inches
