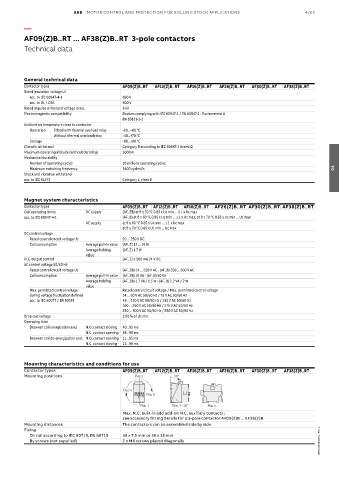

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 4/23

—
AF09(Z)B..RT ... AF38(Z)B..RT 3-pole contactors

Technical data

General technical data
Contactor types AF09(Z)B..RT AF12(Z)B..RT AF16(Z)B..RT AF26(Z)B..RT AF30(Z)B..RT AF38(Z)B..RT
Rated insulation voltage Ui
acc. to IEC 60947-4-1 690 V
acc. to UL / CSA 600 V
Rated impulse withstand voltage Uimp. 6 kV
Electromagnetic compatibility Devices complying with IEC 60947-1 / EN 60947-1 - Environment A
EN 50121-3-2
Ambient air temperature close to contactor
Operation Fitted with thermal overload relay -20...+60 °C
Without thermal overload relay -40...+70 °C
Storage -60...+80 °C
Climatic withstand Category B according to IEC 60947-1 Annex Q
Maximum operating altitude (without derating) 3000 m
Mechanical durability
Number of operating cycles 10 millions operating cycles
Maximum switching frequency 3600 cycles/h 04
Shock and vibration withstand
acc. to IEC 61373 Category 1, class B

Magnet system characteristics
Contactor types AF09(Z)B..RT AF12(Z)B..RT AF16(Z)B..RT AF26(Z)B..RT AF30(Z)B..RT AF38(Z)B..RT
Coil operating limits DC supply (AF..ZB) at θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
acc. to IEC 60947-4-1 (AF..B) at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max; at θ ≤ 70 °C 0.85 x Uc min ... Uc max
AC supply at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max
at θ ≤ 70 °C 0.85 x Uc min ... Uc max
DC control voltage
Rated control circuit voltage Uc 20 ... 250 V DC
Coil consumption Average pull-in value (AF..Z) 12 ... 16 W
Average holding (AF..Z) 1.7 W
value
PLC-output control (AF..Z) ≥ 500 mA 24 V DC
AC control voltage 50/60 Hz
Rated control circuit voltage Uc (AF..ZB) 24 ... 250 V AC - (AF..B) 250 ... 500 V AC
Coil consumption Average pull-in value (AF..ZB) 16 VA - (AF..B) 50 VA
Average holding (AF..ZB) 1.7 VA / 1.5 W - (AF..B) 2.2 VA / 2 W
value
Max. permitted control voltage Rated control circuit voltage / Max. permitted control voltage
during voltage fluctuation defined 24 ... 60 V AC 50/60 Hz / 75 V AC 50/60 Hz
acc. to IEC 60077 / EN 50155 48 ... 130 V AC 50/60 Hz / 150 V AC 50/60 Hz
100 ... 250 V AC 50/60 Hz / 275 V AC 50/60 Hz
250 ... 500 V AC 50/60 Hz / 550 V AC 50/60 Hz
Drop-out voltage ≤ 60 % of Uc min.
Operating time
Between coil energization and: N.O. contact closing 40...95 ms
N.C. contact opening 38...90 ms
Between coil de-energization and: N.O. contact opening 11...95 ms
N.C. contact closing 13...98 ms

Mounting characteristics and conditions for use
Contactor types AF09(Z)B..RT AF12(Z)B..RT AF16(Z)B..RT AF26(Z)B..RT AF30(Z)B..RT AF38(Z)B..RT
Mounting positions Pos. 2 -30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1 - 30° Pos. 5
Max. N.C. built-in add add-on N.C. auxiliary contacts :
see accessory fitting details for a 3-pole contactor AF09(Z)B ... AF38(Z)B
Mounting distances The contactors can be assembled side by side
1SBC101849S0201 - Rev. A
Fixing
On rail according to IEC 60715, EN 60715 35 x 7.5 mm or 35 x 15 mm
By screws (not supplied) 2 x M4 screws placed diagonally
