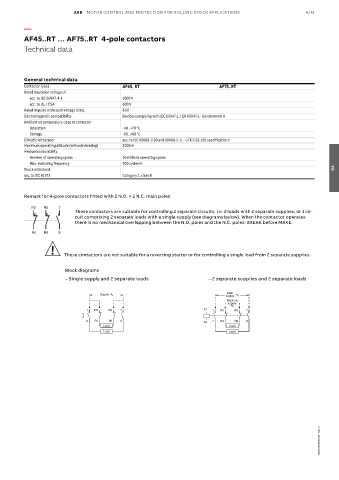

ABB  MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS                 4/51

          —

          AF45..RT … AF75..RT  4-pole contactors
          Technical data





          General technical data
          Contactor types                   AF45..RT                          AF75..RT
          Rated insulation voltage Ui
           acc. to IEC 60947-4-1            1000 V
           acc. to UL / CSA                 600 V
          Rated impulse withstand voltage Uimp.  8 kV
          Electromagnetic compatibility     Devices complying with IEC 60947-1 / EN 60947-1 - Environment A
          Ambient air temperature close to contactor
           Operation                        -40...+70 °C
           Storage                          -60...+80 °C
          Climatic withstand                acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
          Maximum operating altitude (without derating)  3000 m
          Mechanical durability
           Number of operating cycles       10 millions operating cycles
           Max. switching frequency         300 cycles/h
          Shock withstand                                                                                             04
          acc. to IEC 61373                 Category 1, class B


          Remark for 4-pole contactors fitted with 2 N.O. + 2 N.C. main poles

        1   R3  R5    7
                           These contactors are suitable for controlling 2 separate circuits, i.e. 2 loads with 2 separate supplies, or 1 cir-
                           cuit comprising 2 separate loads with a single supply (see diagrams below). When the contactor operates
                           there is no mechanical overlapping between the N.O. poles and the N.C. poles: BREAK before MAKE.
        2   R4  R6    8

                   !
                        These contactors are not suitable for a reversing starter or for controlling a single load from 2 separate supplies.


                        Block diagrams
                        – Single supply and 2 separate loads              – 2 separate supplies and 2 separate loads


                                                                                 Main
                                    Supply                                      supply
                                                                                 Back-up
                                                                                 supply
                            A1  1  R3  R5  7                             A1  1  R3  R5  7
                            A2  2  R4  R6  8                             A2  2  R4  R6  8
                                     Load                                         Load
                                     Load                                         Load



















                                                                                                                 1SBC100085S0201 - Rev. A
