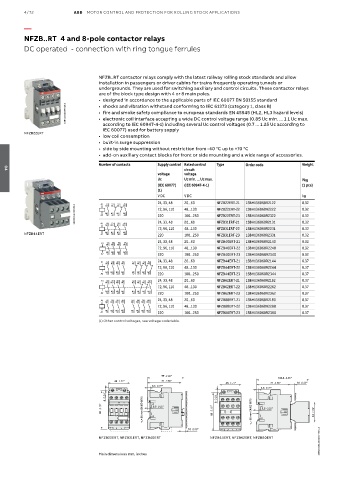

4/72 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
NFZB..RT 4 and 8-pole contactor relays

DC operated - connection with ring tongue ferrules

NFZB..RT contactor relays comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or
undergrounds. They are used for switching auxiliary and control circuits. These contactor relays
are of the block type design with 4 or 8 main poles.
• designed in accordance to the applicable parts of IEC 60077 EN 50155 standard
1SBC101403F0014 • fire and smoke safety compliance to european standards EN 45545 (HL2, HL3 hazard levels)
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max.
according to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to
IEC 60077) used for battery supply
NFZB22ERT
• low coil consumption
• built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Number of contacts Supply control Rated control Type Order code Weight
circuit
04
voltage voltage
Uc Uc min. ... Uc max. Pkg
(IEC 60077) (IEC 60947-4-1) (1 pce)
(1)
V DC V DC kg
24, 33, 48 20...60 NFZB22ERT-21 1SBH136060R2122 0.32
A1 NO 13 NC 21 NC 31 NO 43 72, 96, 110 48...130 NFZB22ERT-22 1SBH136060R2222 0.32
1SBC101415F0014 A2 NO 14 NC 22 NC 32 NO 44 220 100...250 NFZB22ERT-23 1SBH136060R2322 0.32

A1
NO 13 NC 21 NO 33 NO 43 24, 33, 48 20...60 NFZB31ERT-21 1SBH136060R2131 0.32
72, 96, 110 48...130 NFZB31ERT-22 1SBH136060R2231 0.32
NFZB44ERT A2 NO 14 NC 22 NO 34 NO 44 220 100...250 NFZB31ERT-23 1SBH136060R2331 0.32
24, 33, 48 20...60 NFZB40ERT-21 1SBH136060R2140 0.32
A1 13 23 33 43
NO NO NO NO
72, 96, 110 48...130 NFZB40ERT-22 1SBH136060R2240 0.32
NO NO NO NO
A2 14 24 34 44 220 100...250 NFZB40ERT-23 1SBH136060R2340 0.32
24, 33, 48 20...60 NFZB44ERT-21 1SBH136060R2144 0.37
A1 13 23 33 43 51 61 71 81
NO NO NO NO NC NC NC NC
72, 96, 110 48...130 NFZB44ERT-22 1SBH136060R2244 0.37
NO NO NO NO NC NC NC NC
A2 14 24 34 44 52 62 72 82 220 100...250 NFZB44ERT-23 1SBH136060R2344 0.37
A1 13 23 33 43 53 61 71 83 24, 33, 48 20...60 NFZB62ERT-21 1SBH136060R2162 0.37
NO NO NO NO NO NC NC NO
72, 96, 110 48...130 NFZB62ERT-22 1SBH136060R2262 0.37
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84 220 100...250 NFZB62ERT-23 1SBH136060R2362 0.37
24, 33, 48 20...60 NFZB80ERT-21 1SBH136060R2180 0.37
A1 13 23 33 43 53 63 73 83
NO NO NO NO NO NO NO NO
72, 96, 110 48...130 NFZB80ERT-22 1SBH136060R2280 0.37
NO NO NO NO NO NO NO NO
A2 14 24 34 44 54 64 74 84 220 100...250 NFZB80ERT-23 1SBH136060R2380 0.37
(1) Other control voltages, see voltage code table.

77 3.03"
35 1.38" 110.5 4.35"
45 1.77" 71 2.80" 2 x 10 0.39"
45 1.77"
ø 4.2 0.17" 71 2.80" 35 1.38" 2 x
5.5 0.22" M4 8-32 UNC
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20" 5 0.20"

1SBC101814S0201 - Rev. A
10 0.39"
5 0.20" 5 0.20"
NFZB22ERT, NFZB31ERT, NFZB40ERT NFZB44ERT, NFZB62ERT, NFZB80ERT
Main dimensions mm, inches
