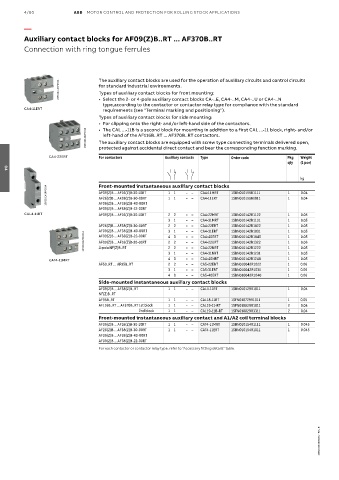

4/80 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

Auxiliary contact blocks for AF09(Z)B..RT ... AF370B..RT
Connection with ring tongue ferrules

1SBC101423F0014 The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits
for standard industrial environments.
Types of auxiliary contact blocks for front mounting:
• Select the 2- or 4-pole auxiliary contact blocks CA-..E, CA4-..M, CA4-..U or CA4-..N
type,according to the contactor or contactor relay type for compliance with the standard
CA4-11ERT requirements (see "Terminal marking and positioning").
Types of auxiliary contact blocks for side mounting:
• For clipping onto the right- and/or left-hand side of the contactors.
• The CAL ...-11B is a second block for mounting in addition to a first CAL ...-11 block, right- and/or
1SBC101421F0014 The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
left-hand of the AF116B..RT ... AF370B..RT contactors.

CA4-22ERT protected against accidental direct contact and bear the corresponding function marking. Weight
For contactors
Type
Pkg
Auxiliary contacts
Order code
qty (1 pce)
04
kg
Front-mounted instantaneous auxiliary contact blocks
1SBC101426F0014 AF09(Z)B ... AF16(Z)B-30-10RT 1 1 – – – – CA4-11MRT 1SBN010155R1111 1 1 0.04
1SBN010155R1011
0.04
1 1
AF26(Z)B ... AF38(Z)B-30-00RT
CA4-11ERT
AF09(Z)B ... AF38(Z)B-40-00RT
AF09(Z)B ... AF38(Z)B-22-00RT
CAL4-11RT AF09(Z)B ... AF16(Z)B-30-10RT 2 2 – – CA4-22MRT 1SBN010142R1122 1 0.05
3 1 – – CA4-31MRT 1SBN010142R1131 1 0.05
AF26(Z)B ... AF38(Z)B-30-00RT 2 2 – – CA4-22ERT 1SBN010142R1022 1 0.05
AF09(Z)B ... AF38(Z)B-40-00RT 3 1 – – CA4-31ERT 1SBN010142R1031 1 0.05
1SBC101422F0014 AF09(Z)B ... AF16(Z)B-30-01RT 4 0 – – – – CA4-40ERT 1SBN010142R1040 1 1 0.05
AF09(Z)B ... AF38(Z)B-22-00RT
2 2
0.06
CA4-22URT
1SBN010142R1322
2 2
4-pole NF(Z)B..RT
CA4-31NRT
3 1 – – – – CA4-22NRT 1SBN010142R1222 1 1 0.05
1SBN010142R1231
0.05
CAT4-11MRT 4 0 – – CA4-40NRT 1SBN010142R1240 1 0.05
AF50..RT … AF95B..RT 2 2 – – CA5-22ERT 1SBN010042R1022 1 0.06
3 1 – – CA5-31ERT 1SBN010042R1031 1 0.06
4 0 – – CA5-40ERT 1SBN010042R1040 1 0.06
Side-mounted instantaneous auxiliary contact blocks
AF09(Z)B ... AF38(Z)B..RT 1 1 – – CAL4-11RT 1SBN010129R1011 1 0.04
NF(Z)B..RT
AF95B..RT 1 1 – – CAL18-11RT 1SFN010729R1011 1 0.05
AF116B..RT ... AF370B..RT1st block 1 1 – – CAL19-11-RT 1SFN010829R1011 2 0.04
2nd block 1 1 – – CAL19-11B-RT 1SFN010829R3311 2 0.04
Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks
AF09(Z)B ... AF16(Z)B-30-10RT 1 1 – – CAT4-11MRT 1SBN010154R1111 1 0.045
AF26(Z)B ... AF38(Z)B-30-00RT 1 1 – – CAT4-11ERT 1SBN010154R1011 1 0.045
AF09(Z)B ... AF38(Z)B-40-00RT
AF09(Z)B ... AF38(Z)B-22-00RT
For each contactor or contactor relay type, refer to "Accessory fitting details" table.
