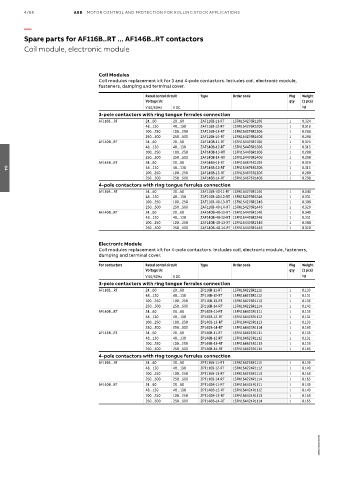

Page 288 - Contactors_Catalogue

4/88 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

Spare parts for AF116B..RT ... AF146B..RT contactors
Coil module, electronic module

Coil Modules
Coil modules replacement kit for 3 and 4-pole contactors. Includes coil, electronic module,
fasteners, damping and terminal cover.
Rated contol circuit Type Order code Pkg Weight
Voltage Uc qty (1 pce)
V 50/60Hz V DC kg
3-pole contactors with ring tongue ferrules connection
AF116B…RT 24…60 20…60 ZAF116B-11-RT 1SFN154276R1106 1 0.324
48…130 48…130 ZAF116B-12-RT 1SFN154276R1206 1 0.313
100…250 100…250 ZAF116B-13-RT 1SFN154276R1306 1 0.288
250…500 250…500 ZAF116B-14-RT 1SFN154276R1406 1 0.298
AF140B...RT 24…60 20…60 ZAF140B-11-RT 1SFN154476R1106 1 0.324
48…130 48…130 ZAF140B-12-RT 1SFN154476R1206 1 0.313
100…250 100…250 ZAF140B-13-RT 1SFN154476R1306 1 0.288
250…500 250…500 ZAF140B-14-RT 1SFN154476R1406 1 0.298
AF146B...RT 24…60 20…60 ZAF146B-11-RT 1SFN154676R1106 1 0.324
48…130 48…130 ZAF146B-12-RT 1SFN154676R1206 1 0.313
04
100…250 100…250 ZAF146B-13-RT 1SFN154676R1306 1 0.288
250…500 250…500 ZAF146B-14-RT 1SFN154676R1406 1 0.298
4-pole contactors with ring tongue ferrules connection
AF116B…RT 24…60 20…60 ZAF116B-40-11-RT 1SFN154276R1146 1 0.340
48…130 48…130 ZAF116B-40-12-RT 1SFN154276R1246 1 0.331
100…250 100…250 ZAF116B-40-13-RT 1SFN154276R1346 1 0.308
250…500 250…500 ZAF116B-40-14-RT 1SFN154276R1446 1 0.320
AF140B...RT 24…60 20…60 ZAF140B-40-11-RT 1SFN154476R1146 1 0.340
48…130 48…130 ZAF140B-40-12-RT 1SFN154476R1246 1 0.331
100…250 100…250 ZAF140B-40-13-RT 1SFN154476R1346 1 0.308
250…500 250…500 ZAF140B-40-14-RT 1SFN154476R1446 1 0.320

Electronic Module
Coil modules replacement kit for 4-pole contactors. Includes coil, electronic module, fasteners,
damping and terminal cover.

For contactors Rated contol circuit Type Order code Pkg Weight
Voltage Uc qty (1 pce)
V 50/60Hz V DC kg
3-pole contactors with ring tongue ferrules connection
AF116B…RT 24…60 20…60 ZP116B-11-RT 1SFN164223R1111 1 0.133
48…130 48…130 ZP116B-12-RT 1SFN164223R1112 1 0.131
100…250 100…250 ZP116B-13-RT 1SFN164223R1113 1 0.133
250…500 250…500 ZP116B-14-RT 1SFN164223R1114 1 0.143
AF140B...RT 24…60 20…60 ZP140B-11-RT 1SFN164423R1111 1 0.133
48…130 48…130 ZP140B-12-RT 1SFN164423R1112 1 0.131
100…250 100…250 ZP140B-13-RT 1SFN164423R1113 1 0.133
250…500 250…500 ZP140B-14-RT 1SFN164423R1114 1 0.143
AF146B...RT 24…60 20…60 ZP146B-11-RT 1SFN164623R1111 1 0.133
48…130 48…130 ZP146B-12-RT 1SFN164623R1112 1 0.131
100…250 100…250 ZP146B-13-RT 1SFN164623R1113 1 0.133
250…500 250…500 ZP146B-14-RT 1SFN164623R1114 1 0.143
4-pole contactors with ring tongue ferrules connection
AF116B…RT 24…60 20…60 ZPT116B-11-RT 1SFN164224R1111 1 0.149
48…130 48…130 ZPT116B-12-RT 1SFN164224R1112 1 0.149
100…250 100…250 ZPT116B-13-RT 1SFN164224R1113 1 0.153
250…500 250…500 ZPT116B-14-RT 1SFN164224R1114 1 0.165
AF140B...RT 24…60 20…60 ZPT140B-11-RT 1SFN164424R1111 1 0.149
48…130 48…130 ZPT140B-12-RT 1SFN164424R1112 1 0.149
100…250 100…250 ZPT140B-13-RT 1SFN164424R1113 1 0.153
250…500 250…500 ZPT140B-14-RT 1SFN164424R1114 1 0.165
