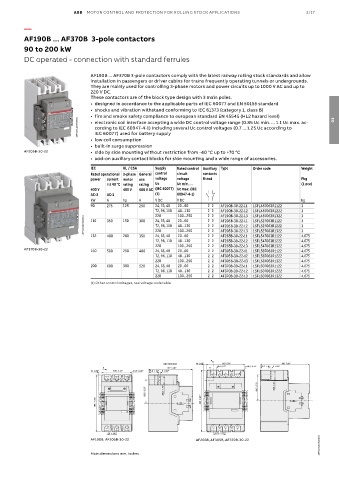

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/17

—

AF190B ... AF370B 3-pole contactors
90 to 200 kW
DC operated - connection with standard ferrules

AF190B ... AF370B 3-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC and up to
220 V DC.
These contactors are of the block type design with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• fire and smoke safety compliance to european standard EN 45545 (HL2 hazard level) 03
1SFC101219V0001 • electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. ac-
cording to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to
IEC 60077) used for battery supply
• low coil consumption
• built-in surge suppression
AF205B-30-22 • side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Supply Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General control circuit contacts
power current motor use voltage voltage fitted Pkg
θ ≤ 40 °C rating rating Uc Uc min. … (1 pce)
400 V 480 V 600 V AC (IEC 60077) Uc max. (IEC
AC-3 AC-1 (1) 60947-4-1)
kW A hp A V DC V DC kg
90 275 125 250 24, 33, 48 20...60 2 2 AF190B-30-22-11 1SFL487063R1122 3
72, 96, 110 48...130 2 2 AF190B-30-22-12 1SFL487063R1222 3
220 100...250 2 2 AF190B-30-22-13 1SFL487063R1322 3
1SFC101221V0001 350 300 72, 96, 110 48...130 2 2 AF205B-30-22-11 1SFL527063R1122 3 3 3
2 2
150
24, 33, 48
110
20...60
1SFL527063R1222
AF205B-30-22-12
2 2
100...250
220
1SFL527063R1322
AF205B-30-22-13
132
24, 33, 48
400
200
350
2 2
48...130
AF265B-30-22-12
72, 96, 110 20...60 2 2 AF265B-30-22-11 1SFL547063R1122 4.675
1SFL547063R1222
4.675
220 100...250 2 2 AF265B-30-22-13 1SFL547063R1322 4.675
AF370B-30-22 160 500 250 400 24, 33, 48 20...60 2 2 AF305B-30-22-11 1SFL587063R1122 4.675
72, 96, 110 48...130 2 2 AF305B-30-22-12 1SFL587063R1222 4.675
220 100...250 2 2 AF305B-30-22-13 1SFL587063R1322 4.675
200 600 300 520 24, 33, 48 20...60 2 2 AF370B-30-22-11 1SFL607063R1122 4.675
72, 96, 110 48...130 2 2 AF370B-30-22-12 1SFL607063R1222 4.675
220 100...250 2 2 AF370B-30-22-13 1SFL607063R1322 4.675
(1) Other control voltages, see voltage code table.
A
SECTION B-B 10 0.39" 140 5.51" 180 7.09"
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 152 5.98"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"

35 1.38" 43.75 1.72"
1SFC101272C0201 1SFC101272C0201
AF190B, AF205B-30-22 AF265B, AF305B, AF370B-30-22
Main dimensions mm, inches
