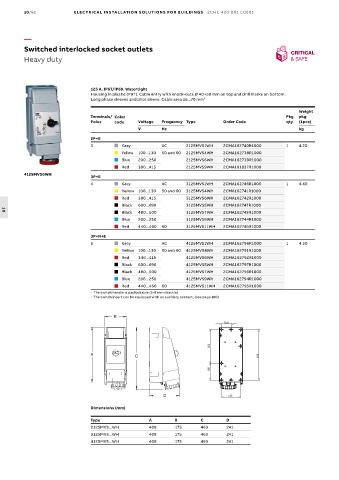

Switched interlocked socket outlets
Heavy duty

125 A. IP67/IP69. Watertight
Housing in plastic (PBT). Cable entry with knock-outs Ø 40+50 mm on top and drill marks on bottom.
Long phase sleeves and pilot sleeve. Cable area 16...70 mm 2

Weight
Terminals/ Color Pkg pkg
Poles code Voltage Frequency Type Order Code qty (1pce)
V Hz kg
2P+E
3  Grey AC 2125MVS1WH 2CMA162740R1000 1 4.20

 Yellow
 100...130 50 and 60 2125MVS4WH 2CMA162738R1000
 200...250 2125MVS6WH 2CMA162739R1000
 Blue
 Red
 380...415 2125MVS9WH 2CMA101837R1000
4125MVS6WH
3P+E
 Grey
4  AC 3125MVS1WH 2CMA162746R1000 1 4.40
 50 and 60 3125MVS4WH 2CMA162741R1000
 Yellow 100...130
 Red
 380...415 3125MVS6WH 2CMA162742R1000
  Black 600...690 3125MVS5WH 2CMA162747R1000

  Black 480...500 3125MVS7WH 2CMA162743R1000
10
 Blue 200...250 3125MVS9WH 2CMA162744R1000

 Red 440...460 60 3125MVS11WH 2CMA162745R1000

3P+N+E
5  Grey AC 4125MVS1WH 2CMA162796R1000 1 4.50

 Yellow 100...130 50 and 60 4125MVS4WH 2CMA162791R1000

 Red 346...415 4125MVS6WH 2CMA162792R1000


  Black 600...690 4125MVS5WH 2CMA162797R1000
  Black 480...500 4125MVS7WH 2CMA162793R1000


 Blue 208...250 4125MVS9WH 2CMA162794R1000
 Red 440...460 60 4125MVS11WH 2CMA162795R1000

- The switch handle is padlockable (5-8 mm shackle)
- The switch insert can be equipped with an auxiliary contact, (see page 100)
B
72,5
253
A C 378

125

D 145

Dimensions (mm)

Type A B C D
2125MVS...WH 408 175 463 241
3125MVS...WH 408 175 463 241
4125MVS...WH 408 175 463 241
