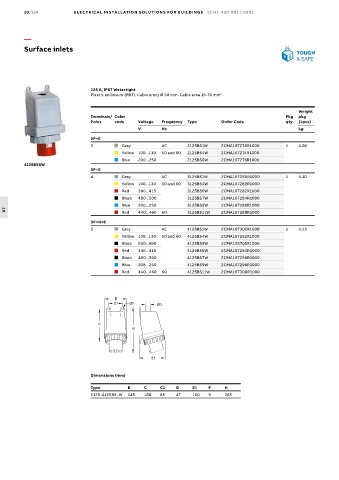

Surface inlets

125 A, IP67 Watertight
Plastic enclosure (PBT). Cable entry Ø 50 mm. Cable area 16-70 mm . 2

Weight
Terminals/ Color Pkg pkg
Poles code Voltage Frequency Type Order Code qty (1pce)
V Hz kg
2P+E
3  Grey AC 2125BS1W 2CMA167278R1000 1 4.00

 50 and 60 2125BS4W 2CMA167274R1000
 Yellow 100...130
  Blue 200...250 2125BS6W 2CMA167276R1000

4125BS6W
3P+E
4  AC 3125BS1W 2CMA167290R1000 1 4.10
 Grey
 Yellow 100...130
 50 and 60 3125BS4W 2CMA167280R1000
 Red 380...415 3125BS6W 2CMA167282R1000

  Black 480...500 3125BS7W 2CMA167284R1000

  Blue 200...250 3125BS9W 2CMA167286R1000


 Red 440...460 60 3125BS11W 2CMA167288R1000
10
3P+N+E

5  Grey AC 4125BS1W 2CMA167302R1000 1 4.25
 Yellow 100...130
 50 and 60 4125BS4W 2CMA167292R1000

  Black 600...690 4125BS5W 2CMA126705R1000
 Red
 346...415 4125BS6W 2CMA167294R1000

  Black 480...500 4125BS7W 2CMA167296R1000
  Blue 208...250 4125BS9W 2CMA167298R1000

 Red 440...460 60 4125BS11W 2CMA167300R1000

B
C1 Ø F
ØD
C
H

E1

Dimensions (mm)
Type B C C1 D E1 F H
2125-4125BS..W 145 188 85 47 160 9 265
