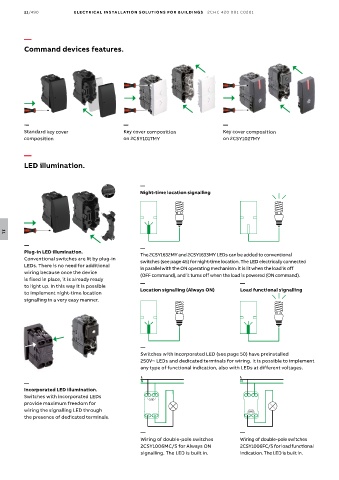

11/490 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Command devices features.

— — —
Standard key cover Key cover composition Key cover composition
composition on 2CSY1017MY on 2CSY1027MY

—
LED illumination.

—
Night-time location signalling

11
— —
Plug-in LED illumination. The 2CSY1632MY and 2CSY1633MY LEDs can be added to conventional
Conventional switches are lit by plug-in switches (see page 45) for night-time location. The LED electrically connected
LEDs. There is no need for additional in parallel with the ON operating mechanism: it is lit when the load is off
wiring because once the device (OFF command), and it turns off when the load is powered (ON command).
is fixed in place, it is already ready — —
to light up. In this way it is possible Location signalling (Always ON) Load functional signalling
to implement night-time location
signalling in a very easy manner.

—
Switches with incorporated LED (see page 50) have preinstalled
250V~ LEDs and dedicated terminals for wiring. It is possible to implement
any type of functional indication, also with LEDs at different voltages.
L L
— N N
Incorporated LED illumination.
Switches with incorporated LEDs
provide maximum freedom for
wiring the signalling LED through
the presence of dedicated terminals.

— —
Wiring of double-pole switches Wiring of double-pole switches
2CSY1006MC/S for Always ON 2CSY1006FC/S for load functional
signalling. The LED is built in. indication. The LED is built in.
