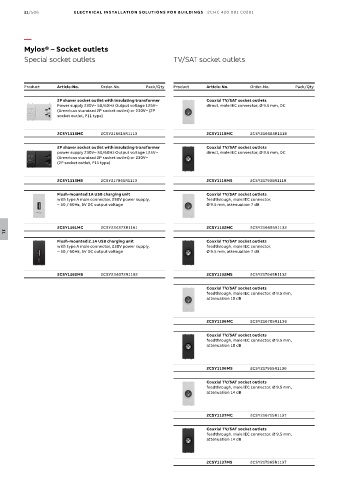

11/506 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Mylos® – Socket outlets
Special socket outlets TV/SAT socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2P shaver socket outlet with insulating transformer Coaxial TV/SAT socket outlets
Power supply 230V~ 50/60Hz Output voltage 125V~ direct, male IEC connector, Ø 9.5 mm, DC
(American standard 2P socket outlet) or 230V~ (2P
socket outlet, P11 type)

2CSY1113MC 2CSY216615R1113 2CSY1118MC 2CSY216685R1118

2P shaver socket outlet with insulating transformer Coaxial TV/SAT socket outlets
power supply 230V~ 50/60Hz Output voltage 125V~ direct, male IEC connector, Ø 9.5 mm, DC
(American standard 2P socket outlet) or 230V~
(2P socket outlet, P11 type)

2CSY1113MS 2CSY217865R1113 2CSY1118MS 2CSY217935R1118

Flush-mounted 1A USB charging unit Coaxial TV/SAT socket outlets
with type A male connector, 250V power supply, feedthrough, male IEC connector,
~ 50 / 60Hz, 5V DC output voltage Ø 9.5 mm, attenuation 7 dB

2CSY1161MC 2CSY234373R1161 2CSY1132MC 2CSY216695R1132
11
Flush-mounted 2.1A USB charging unit Coaxial TV/SAT socket outlets
with type A male connector, 230V power supply, feedthrough, male IEC connector,
~ 50 / 60Hz, 5V DC output voltage Ø 9.5 mm, attenuation 7 dB

2CSY1162MS 2CSY234072R1162 2CSY1132MS 2CSY217945R1132

Coaxial TV/SAT socket outlets
feedthrough, male IEC connector, Ø 9.5 mm,
attenuation 10 dB

2CSY1136MC 2CSY216705R1136

Coaxial TV/SAT socket outlets
feedthrough, male IEC connector, Ø 9.5 mm,
attenuation 10 dB

2CSY1136MS 2CSY217955R1136

Coaxial TV/SAT socket outlets
feedthrough, male IEC connector, Ø 9.5 mm,
attenuation 14 dB

2CSY1137MC 2CSY216715R1137

Coaxial TV/SAT socket outlets
feedthrough, male IEC connector, Ø 9.5 mm,
attenuation 14 dB

2CSY1137MS 2CSY217965R1137
