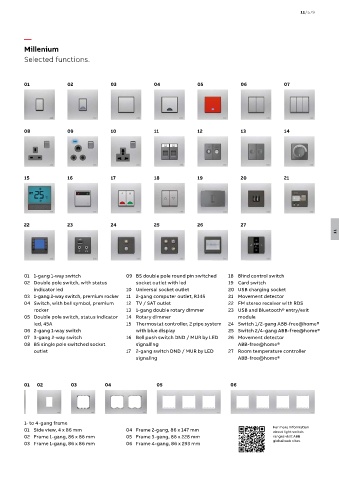

Millenium
Selected functions.

01 02 03 04 05 06 07

08 09 10 11 12 13 14

15 16 17 18 19 20 21

22 23 24 25 26 27
11

01 1-gang 1-way switch 09 BS double pole round pin switched 18 Blind control switch
02 Double pole switch, with status socket outlet with led 19 Card switch
indicator led 10 Universal socket outlet 20 USB charging socket
03 1-gang 2-way switch, premium rocker 11 2-gang computer outlet, RJ45 21 Movement detector
04 Switch, with bell symbol, premium 12 TV / SAT outlet 22 FM stereo receiver with RDS
rocker 13 1-gang double rotary dimmer 23 USB and Bluetooth® entry/exit
05 Double pole switch, status indicator 14 Rotary dimmer module
led, 45A 15 Thermostat controller, 2 pipe system 24 Switch 1/2-gang ABB-free@home®
06 2-gang 1-way switch with blue display 25 Switch 2/4-gang ABB-free@home®
07 3-gang 2-way switch 16 Bell push switch DND / MUR by LED 26 Movement detector
08 BS single pole switched socket signalling ABB-free@home®
outlet 17 2-gang switch DND / MUR by LED 27 Room temperature controller
signaling ABB-free@home®

01 02 03 04 05 06

1- to 4-gang frame
01 Side view, 4 x 86 mm 04 Frame 2-gang, 86 x 147 mm For more information
about light switch
02 Frame 1-gang, 86 x 86 mm 05 Frame 3-gang, 86 x 228 mm ranges visit ABB
03 Frame 1-gang, 86 x 86 mm 06 Frame 4-gang, 86 x 293 mm global web sites.
