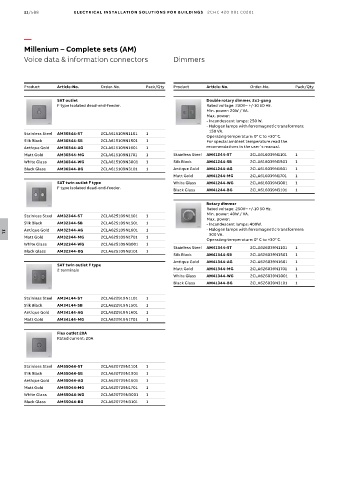

Page 1694 - Din prodcuts 2020

11/588 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Millenium – Complete sets (AM)
Voice data & information connectors Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

SAT outlet Double rotary dimmer, 2x1-gang
F type isolated dead-end-feeder. Rated voltage: 230V~ +/-10 50 Hz.
Min. power: 20W / VA.
Max. power:
- Incandescent lamps: 250 W.
- Halogen lamps with ferromagnetic transformers:
150 VA.
Stainless Steel AM30344-ST 2CLA615109N1101 1
Operating temperature: 0° C to +30° C.
Silk Black AM30344-SB 2CLA615109N1501 1 For special ambient temperature read the
Antique Gold AM30344-AG 2CLA615109N1601 1 recomendations in the user´s manual.
Matt Gold AM30344-MG 2CLA615109N1701 1 Stainless Steel AM41244-ST 2CLA616039N1101 1
White Glass AM30344-WG 2CLA615109N3001 1 Silk Black AM41244-SB 2CLA616039N1501 1
Black Glass AM30344-BG 2CLA615109N3101 1 Antique Gold AM41244-AG 2CLA616039N1601 1
Matt Gold AM41244-MG 2CLA616039N1701 1
SAT twin outlet F type White Glass AM41244-WG 2CLA616039N3001 1
F type isolated dead-end-feeder. Black Glass AM41244-BG 2CLA616039N3101 1

Rotary dimmer
Rated voltage: 250V~ +/-10 50 Hz.
Stainless Steel AM32344-ST 2CLA625109N1101 1 Min. power: 40W / VA.
Max. power:
Silk Black AM32344-SB 2CLA625109N1501 1 - Incandescent lamps: 400W.
Antique Gold AM32344-AG 2CLA625109N1601 1 - Halogen lamps with ferromagnetic transformers:
300 VA.
11
Matt Gold AM32344-MG 2CLA625109N1701 1
Operating temperature: 0° C to +30° C.
White Glass AM32344-WG 2CLA625109N3001 1
Stainless Steel AM41344-ST 2CLA626039N1101 1
Black Glass AM32344-BG 2CLA625109N3101 1
Silk Black AM41344-SB 2CLA626039N1501 1
Antique Gold AM41344-AG 2CLA626039N1601 1
SAT twin outlet F type
2 terminals Matt Gold AM41344-MG 2CLA626039N1701 1
White Glass AM41344-WG 2CLA626039N3001 1
Black Glass AM41344-BG 2CLA626039N3101 1
Stainless Steel AM34144-ST 2CLA622919N1101 1
Silk Black AM34144-SB 2CLA622919N1501 1
Antique Gold AM34144-AG 2CLA622919N1601 1
Matt Gold AM34144-MG 2CLA622919N1701 1
Flex outlet 20A
Rated current: 20A

Stainless Steel AM55044-ST 2CLA620729N1101 1
Silk Black AM55044-SB 2CLA620729N1501 1
Antique Gold AM55044-AG 2CLA620729N1601 1
Matt Gold AM55044-MG 2CLA620729N1701 1
White Glass AM55044-WG 2CLA620729N3001 1
Black Glass AM55044-BG 2CLA620729N3101 1
