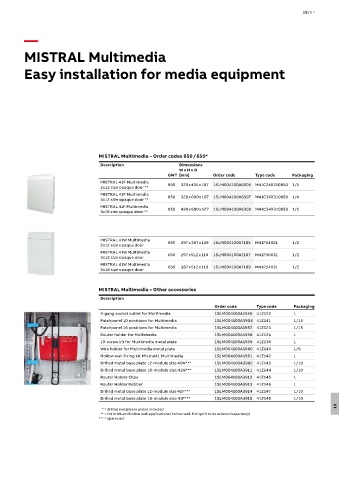

MISTRAL Multimedia

Easy installation for media equipment

MISTRAL Multimedia – Order codes 850 / 650*
Description Dimensions
W x H x D
GWT [mm] Order code Type code Packaging
MISTRAL 41F Multimedia 850 320 x 435 x 107 1SLM004100A6305 M41C24X210850 1/5
2x12 size opaque door **
MISTRAL 41F Multimedia
3x12 size opaque door ** 850 320 x 600 x 107 1SLM004100A6307 M41C36X310850 1/4
MISTRAL 41F Multimedia 850 430 x 600 x 127 1SLM004100A6309 M41C54X310850 1/1
3x18 size opaque door **

MISTRAL 41W Multimedia
2x12 size opaque door 650 297 x 387 x 119 1SLM004100A7105 M41P24X21 1/2
MISTRAL 41W Multimedia 650 297 x 512 x 119 1SLM004100A7107 M41P36X31 1/2
3x12 size opaque door
MISTRAL 41W Multimedia
3x18 size opaque door 650 387 x 512 x 119 1SLM004100A7109 M41P54X31 1/2

MISTRAL Multimedia – Other accessories
Description
Order code Type code Packaging
3-gang socket outlet for Multimedia 1SLM004100A1956 41Z122 1
Patchpanel 10 positions for Multimedia 1SLM004100A3904 41Z141 1/15
Patchpanel 16 positions for Multimedia 1SLM004100A1957 41Z123 1/15
Router holder for Multimedia 1SLM004100A1958 41Z124 1
10-screw kit for Multimedia metal plate 1SLM004100A1959 41Z139 1
Wire holder for Multimedia metal plate 1SLM004100A1960 41Z140 1/5
Hollow wall fixing kit Mistral41 Multimedia 1SLM004100A1961 41Z142 1
Drilled metal base plate 12-module size 41W*** 1SLM004100A3902 41Z143 1/10
Drilled metal base plate 18-module size 41W*** 1SLM004100A3911 41Z144 1/10
Router Holder Clips 1SLM004100A3912 41Z145 1
Router Holder Rubber 1SLM004100A3913 41Z146 1
Drilled metal base plate 12-module size 41F*** 1SLM004100A3914 41Z147 1/10
Drilled metal base plate 18-module size 41F*** 1SLM004100A3915 41Z148 1/10
19
* = drilled metal base plates included
** = for brick and hollow wall applications (hollow wall: fixing kit to be ordered separately)
*** = spare part
