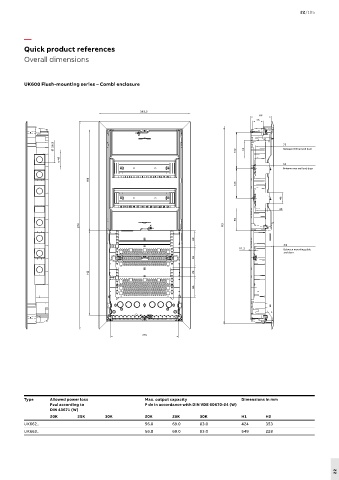

Quick product references
Overall dimensions
UK600 Flush-mounting series – Combi enclosure
383,5
88
43
26,5 75
152
Ø 74 Between DIN rail and door
45
o
94
Between rear wall and door
H1
125
46
48
94
872 H3
68
81
11,5 Between mounting plate
and door
86
H2 39
86
288
Type Allowed power loss Max. output capacity Dimensions in mm
Pzul according to P de in accordance with DIN VDE 60670-24 (W)
DIN 43671 (W)
20K 25K 30K 20K 25K 30K H1 H2
UK662.. 56.0 69.0 83.0 424 353
UK663.. 56.0 69.0 83.0 549 228
