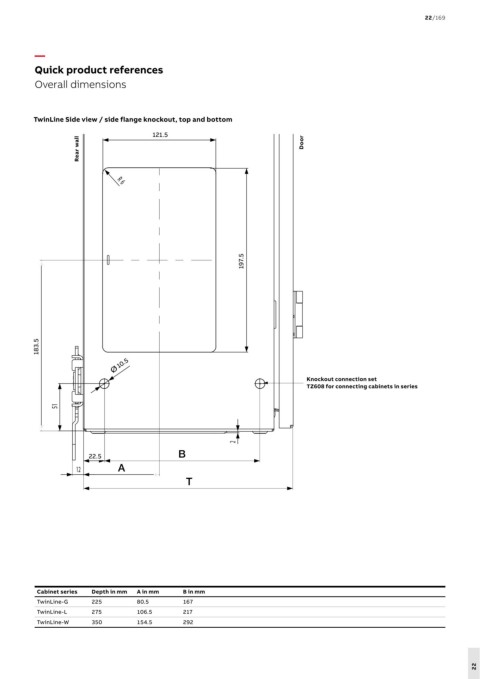

          Quick product references
          Overall dimensions




         TwinLine Side view / side flange knockout, top and bottom
                                       121.5
                    Rear wall                                               Door
















                                                             197.5











          183.5

                              10.5

                                                                             Knockout connection set
                                                                             TZ608 for connecting cabinets in series









                       22.5



















          Cabinet series  Depth in mm  A in mm  B in mm
          TwinLine-G    225        80.5       167
          TwinLine-L    275        106.5      217
          TwinLine-W    350        154.5      292





                                                                                                                       22
