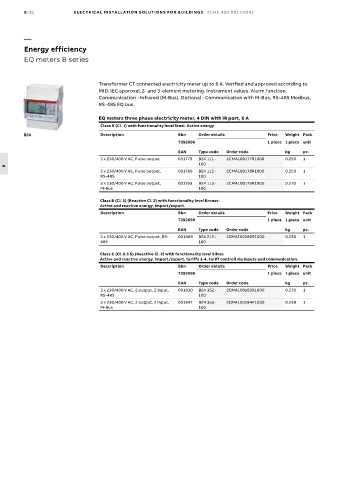

8/32 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Energy efficiency
EQ meters B series

Transformer CT connected electricity meter up to 6 A. Verified and approved according to
MID. IEC approval. 2- and 3-element metering. Instrument values. Alarm function.
Communication - Infrared (M-Bus). Optional - Communication with M-Bus, RS-485 Modbus,
RS-485 EQ bus.

EQ meters three phase electricity meter, 4 DIN with IR port, 6 A
Class B (Cl. 1) with functionality level Steel. Active energy
B24 Description Bbn Order details Price Weight Pack
7392696 1 piece 1 piece unit
EAN Type code Order code kg pc.
3 x 230/400 V AC, Pulse output 001779 B24 111 - 2CMA100177R1000 0.250 1
100
8
3 x 230/400 V AC, Pulse output, 001786 B24 112 - 2CMA100178R1000 0.250 1
RS-485 100
3 x 230/400 V AC, Pulse output, 001793 B24 113 - 2CMA100179R1000 0.270 1
M-Bus 100
Class B (Cl. 1) (Reactive Cl. 2) with functionality level Bronze.
Active and reactive energy, import/export.
Description Bbn Order details Price Weight Pack
7392696 1 piece 1 piece unit
EAN Type code Order code kg pc.
3 x 230/400 V AC, Pulse output, RS- 001809 B24 212 - 2CMA100180R1000 0.250 1
485 100

Class C (Cl. 0.5 S) (Reactive Cl. 2) with functionality level Silver.
Active and reactive energy, import/export, tariffs 1-4, tariff controll via inputs and communication.
Description Bbn Order details Price Weight Pack
7392696 1 piece 1 piece unit

EAN Type code Order code kg pc.
3 x 230/400 V AC, 2 output, 2 input, 001830 B24 352 - 2CMA100183R1000 0.270 1
RS-485 100
3 x 230/400 V AC, 2 output, 2 input, 001847 B24 353 - 2CMA100184R1000 0.290 1
M-Bus 100
