10/67

—

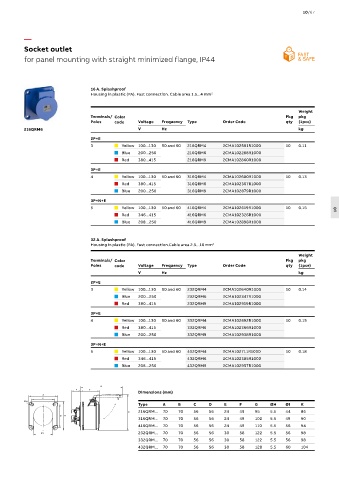

Socket outlet
for panel mounting with straight minimized flange, IP44 F FAST

16 A. Splashproof
Housing in plastic (PA). Fast connection. Cable area 1.5...4 mm 2

Weight
Terminals/ Color Pkg pkg
Poles code Voltage Frequency Type Order Code qty (1pce)
216QRM6 V Hz kg
2P+E
3  Yellow 100...130 50 and 60 216QRM4 2CMA102581R1000 10 0.11


 Blue 200...250 216QRM6 2CMA102288R1000
 Red 380...415 216QRM9 2CMA102860R1000

3P+E

4   Yellow 100...130 50 and 60 316QRM4 2CMA102600R1000 10 0.13
 Red
 380...415 316QRM6 2CMA102307R1000
 200...250 316QRM9 2CMA102879R1000
 Blue
3P+N+E

5   Yellow 100...130 50 and 60 416QRM4 2CMA102619R1000 10 0.15
10

 Red 346...415 416QRM6 2CMA102326R1000
 Blue 208...250 416QRM9 2CMA102898R1000

32 A. Splashproof
Housing in plastic (PA). Fast connection.Cable area 2.5...10 mm 2
Weight
Terminals/ Color Pkg pkg
Poles code Voltage Frequency Type Order Code qty (1pce)
V Hz kg
2P+E
3  Yellow 100...130 50 and 60 232QRM4 2CMA102640R1000 10 0.14

 Blue
 200...250 232QRM6 2CMA102347R1000

 Red 380...415 232QRM9 2CMA102919R1000
3P+E

4   Yellow 100...130 50 and 60 332QRM4 2CMA102692R1000 10 0.15
 Red
 380...415 332QRM6 2CMA102366R1000
 Blue
 200...250 332QRM9 2CMA102938R1000
3P+N+E
5   Yellow 100...130 50 and 60 432QRM4 2CMA102711R1000 10 0.18


 Red 346...415 432QRM6 2CMA102385R1000
 208...250 432QRM9 2CMA102957R1000
 Blue
G
E F
Dimensions (mm)
A
C
∅ H
Type A B C D E F G ØH ØI K
K 216QRM... 70 70 56 56 24 49 95 5.5 44 86
D B
316QRM... 70 70 56 56 24 49 102 5.5 49 90
416QRM... 70 70 56 56 24 49 110 5.5 56 94
∅ I 232QRM... 70 70 56 56 30 58 122 5.5 56 98
332QRM... 70 70 56 56 30 58 122 5.5 56 98
432QRM... 70 70 56 56 30 58 128 5.5 60 104
