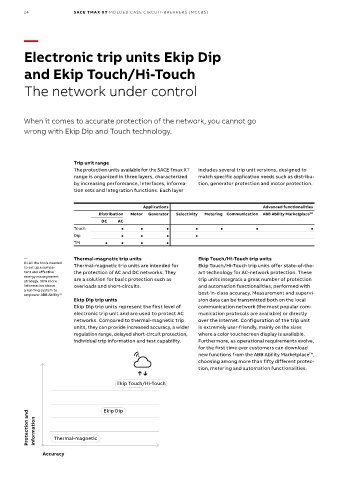

24 SACE TMA X XT MOLDED C ASE CIRCUIT-BRE AKERS (MCCBS)

—

Electronic trip units Ekip Dip

and Ekip Touch/Hi-Touch

The network under control

When it comes to accurate protection of the network, you cannot go
wrong with Ekip Dip and Touch technology.

Trip unit range
The protection units available for the SACE Tmax XT includes several trip unit versions, designed to
range is organized in three layers, characterized match specific application needs such as distribu-
by increasing performance, interfaces, informa- tion, generator protection and motor protection.
tion sets and integration functions. Each layer

Applications Advanced functionalities
Distribution Motor Generator Selectivity Metering Communication ABB Ability Marketplace TM
DC AC
Touch
Dip
TM

— Thermal-magnetic trip units Ekip Touch/Hi-Touch trip units
01 All the tools needed Thermal-magnetic trip units are intended for Ekip Touch/Hi-Touch trip units offer state-of-the-
to set up a compe-
tent and effective the protection of AC and DC networks. They art technology for AC-network protection. These
energy management are a solution for basic protection such as trip units integrate a great number of protection
strategy. 30% more
information about overloads and short-circuits. and automation functionalities, performed with
a running system to best-in-class accuracy. Measurement and supervi-
empower ABB Ability TM
Ekip Dip trip units sion data can be transmitted both on the local
Ekip Dip trip units represent the first level of communication network (the most popular com-
electronic trip unit and are used to protect AC munication protocols are available) or directly
networks. Compared to thermal-magnetic trip over the Internet. Configuration of the trip unit
units, they can provide increased accuracy, a wider is extremely user-friendly, mainly on the sizes
regulation range, delayed short-circuit protection, where a color touchscreen display is available.
indi vidual trip information and test capability. Furthermore, as operational requirements evolve,
for the first time ever customers can download
new functions from the ABB Ability Marketplace ,
TM
choosing among more than fifty different protec-
tion, metering and automation functionalities.

Ekip Touch/Hi-Touch

Protection and information Thermal-magnetic Ekip Dip

Accuracy
