3/80 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

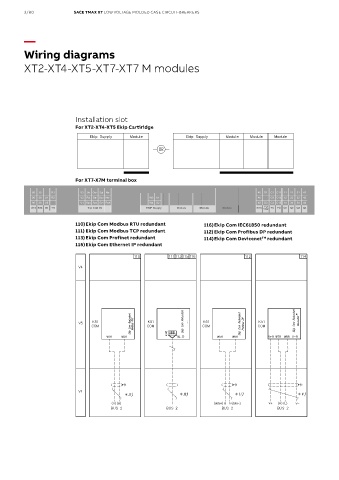

Wiring diagrams

XT2-XT4-XT5-XT7-XT7 M modules

Installation slot
For XT2-XT4-XT5 Ekip Cartiridge

For XT7-X7M terminal box

95 35 R1 V3 Vn Ge Szi Ne- 45 D1 C1 C11 11 21 31 41
96 36 U1 R2 V2 Rct Ge- Szo Ne W3 K1 46 C3 C13 12 22 32 42
98 38 U2 V1 Gzo Szc Gzi Rca W4 K2 48 D2 C2 C12 14 24 34 44
YU
S51 S33 M YR Trip Unit I/O EKIP Supply Module Module Module RTC YO2 YC YO Q1 Q2 Q3 Q4
110) Ekip Com Modbus RTU redundant 116) Ekip Com IEC61850 redundant
111) Ekip Com Modbus TCP redundant 112) Ekip Com Profibus DP redundant
113) Ekip Com Profinet redundant 114) Ekip Com Devicenet redundant
TM
115) Ekip Com Ethernet IP redundant
