1/40 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—

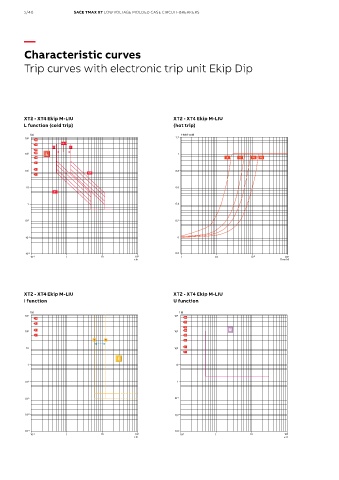

Characteristic curves
Trip curves with electronic trip unit Ekip Dip
XT2 - XT4 Ekip M-LIU XT2 - XT4 Ekip M-LIU
L function (cold trip) (hot trip)
t [s] t-hot/t-cold
10 4 1.2
0.4...1
0.4 1
10 3 1
3E 5E 10E 20E
10 2 0.8
20E
10 0.6
3E
1 0.4
10 -1 0.2
10 -2 0
10 -3 - 0.2
10 -1 1 10 10 2 1 10 10 2 10 3
x In Time [s]
XT2 - XT4 Ekip M-LIU XT2 - XT4 Ekip M-LIU
I function U function
t [s] t [s]
10 3 10 4
10 2 10 3
6 13
10 10 2
1 10
10 -1 1
10 -2 10 -1
10 -3 10 -2
10 -4 10 -3
10 -1 1 10 10 2 10 -1 1 10 10 2
x In x I1
