1/66 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

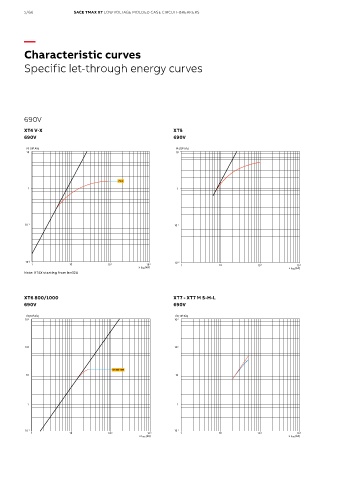

Characteristic curves

Specific let-through energy curves

690V

XT4 V-X XT5
690V 690V

I 2 t [10 6 A 2 s] I 2 t [10 6 A 2 s]
10 10

250 A
1 1

10 -1 10 -1

10 -2 10 -2
1 10 10 2 10 3 1 10 10 2 10 3
x I rms [kA] x I rms [kA]
Note: XT4X starting from In=32A

XT6 800/1000 XT7 - XT7 M S-H-L
690V 690V

I 2 t [10 6 A 2 s] I 2 t [10 6 A 2 s]
10 3 10 3

10 2 10 2

XT6 800-1000
10 10

1 1

10 -1 10 -1
1 10 10 2 10 3 1 10 10 2 10 3
x I rms [kA] x I rms [kA]
