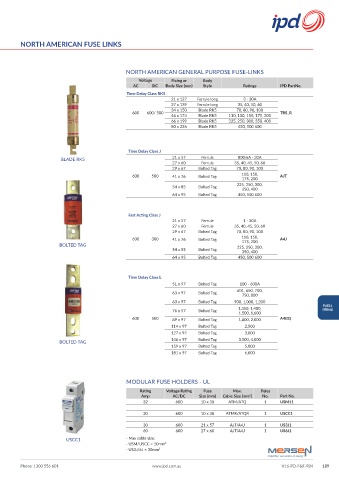

NORTH AMERICAN FUSE LINKS

NORTH AMERICAN GENERAL PURPOSE FUSE-LINKS
Voltage Fixing or Body
AC DC Body Size (mm) Style Ratings IPD PartNo.
Time Delay Class RK5
21 x 127 Ferrule long 3 - 30A
27 x 139 Ferrule long 35, 40, 50, 60
34 x 150 Blade RK5 70, 80, 90, 100
600 600/ 300 TRS_R
46 x 174 Blade RK5 110, 130, 150, 175, 200
66 x 199 Blade RK5 225, 250, 300, 350, 400
80 x 226 Blade RK5 450, 500 600

Time Delay Class J
BLADE RK5 21 x 57 Ferrule 800mA - 30A
27 x 60 Ferrule 35, 40, 45, 50, 60
29 x 67 Bolted Tag 70, 80, 90, 100
600 500 41 x 76 Bolted Tag 110, 150, AJT
175, 200
225, 250, 300,
54 x 85 Bolted Tag
350, 400
64 x 95 Bolted Tag 450, 500 600

Fast Acting Class J
21 x 57 Ferrule 1 - 30A
27 x 60 Ferrule 35, 40, 45, 50, 60
29 x 67 Bolted Tag 70, 80, 90, 100
600 300 41 x 76 Bolted Tag 110, 150, A4J
175, 200
BOLTED TAG 225, 250, 300,
54 x 85 Bolted Tag 350, 400
64 x 95 Bolted Tag 450, 500 600

Time Delay Class L
51 x 97 Bolted Tag 100 - 600A
63 x 97 Bolted Tag 601, 650, 700,
750, 800
63 x 97 Bolted Tag 900, 1,000, 1,200
1,350, 1,400, FUSES &
76 x 97 Bolted Tag FITTINGS
1,500, 1,600
600 500 89 x 97 Bolted Tag 1,800, 2,000 A4BQ
114 x 97 Bolted Tag 2,500
127 x 97 Bolted Tag 3,000
BOLTED TAG 146 x 97 Bolted Tag 3,500, 4,000
159 x 97 Bolted Tag 5,000
181 x 97 Bolted Tag 6,000

MODULAR FUSE HOLDERS - UL
Rating Voltage Rating Fuse Max. Poles
Amp AC/DC Size (mm) Cable Size (mm ) No. Part No.
2
32 600 10 x 38 ATM/ATQ 1 USM11
30 600 10 x 38 ATMR/ATQR 1 USCC1
30 600 21 x 57 AJT/A4J 1 US3J1
60 600 27 x 60 AJT/A4J 1 US6J1
USCC1 - Max cable size:
- USM/USCC = 10mm²
- US3J/6J = 30mm²
