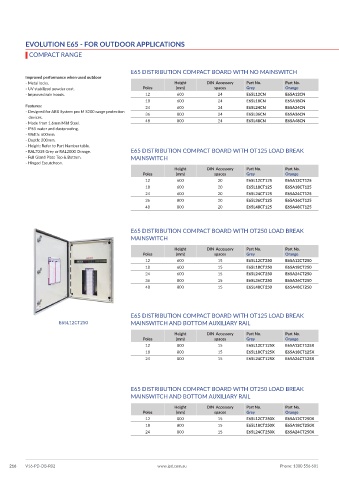

Page 224 - V16 Catalogue Final

EVOLUTION E65 - FOR OUTDOOR APPLICATIONS
COMPACT RANGE

E65 DISTRIBUTION COMPACT BOARD WITH NO MAINSWITCH
Improved performance when used outdoor
- Metal locks. Height DIN Accessory Part No. Part No.
- UV stabilized powder coat. Poles (mm) spaces Grey Orange
- Improved rain hoods. 12 600 24 E65L12CN E65A12CN
18 600 24 E65L18CN E65A18CN
Features: 24 600 24 E65L24CN E65A24CN
- Designed for ABB System pro M S200 range protection 36 800 24 E65L36CN E65A36CN
devices.
- Made from 1.6mm Mild Steel. 48 800 24 E65L48CN E65A48CN
- IP65 water and dustproofing.
- Width: 600mm.
- Depth: 200mm.
- Height: Refer to Part Number table.
- RAL7035 Grey or RAL2000 Orange. E65 DISTRIBUTION COMPACT BOARD WITH OT125 LOAD BREAK
- Full Gland Plate Top & Bottom. MAINSWITCH
- Hinged Escutcheon.
Height DIN Accessory Part No. Part No.
Poles (mm) spaces Grey Orange
12 600 20 E65L12CT125 E65A12CT125
18 600 20 E65L18CT125 E65A18CT125
24 600 20 E65L24CT125 E65A24CT125
36 800 20 E65L36CT125 E65A36CT125
48 800 20 E65L48CT125 E65A48CT125

E65 DISTRIBUTION COMPACT BOARD WITH OT250 LOAD BREAK
MAINSWITCH

Height DIN Accessory Part No. Part No.
Poles (mm) spaces Grey Orange
12 600 15 E65L12CT250 E65A12CT250
18 600 15 E65L18CT250 E65A18CT250
24 600 15 E65L24CT250 E65A24CT250
36 800 15 E65L36CT250 E65A36CT250
48 800 15 E65L48CT250 E65A48CT250

E65 DISTRIBUTION COMPACT BOARD WITH OT125 LOAD BREAK
E65L12CT250 MAINSWITCH AND BOTTOM AUXILIARY RAIL
Height DIN Accessory Part No. Part No.
Poles (mm) spaces Grey Orange
12 800 15 E65L12CT125X E65A12CT125X
18 800 15 E65L18CT125X E65A18CT125X
24 800 15 E65L24CT125X E65A24CT125X

E65 DISTRIBUTION COMPACT BOARD WITH OT250 LOAD BREAK
MAINSWITCH AND BOTTOM AUXILIARY RAIL

Height DIN Accessory Part No. Part No.
Poles (mm) spaces Grey Orange
12 800 15 E65L12CT250X E65A12CT250X
18 800 15 E65L18CT250X E65A18CT250X
24 800 15 E65L24CT250X E65A24CT250X
