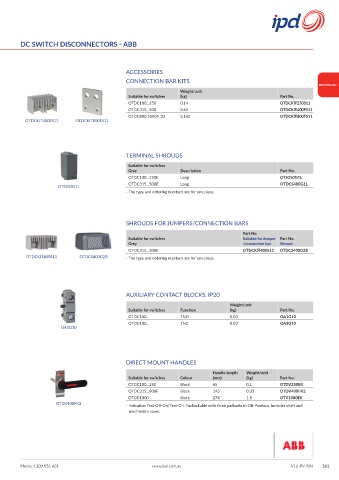

DC SWITCH DISCONNECTORS - ABB

ACCESSORIES
CONNECTION BAR KITS
PHOTOVOLTAIC
Weight/unit
Suitable for switches (kg) Part No.
OTDC100...250 0.14 OTDCKIT250S11
OTDC315...500 0.65 OTDCKIT400FS11
OTDC800.1000F_22 2,165 OTDCKIT800FS11
OTDCKIT400FS11 OTDCKIT800FS11

TERMINAL SHROUDS

Suitable for switches
Grey Description Part No.
OTDC100...250E Long OTS250G1L
OTDC315...500E Long OTDCS400G1L
OTS250G1L
- The type and ordering numbers are for one piece.

SHROUDS FOR JUMPERS/CONNECTION BARS
Part No.
Suitable for switches Suitable for Jumper Part No.
Grey /connection bar Shroud
OTDC315...500E OTDCKIT400S11 OTDCS400G2B
OTDCKIT400S11 OTDCS400G2B - The type and ordering numbers are for one piece.

AUXILIARY CONTACT BLOCKS. IP20
Weight/unit
Suitable for switches Function (kg) Part No.
OTDC100... 1NO 0.03 OA1G10
OTDC100... 1NC 0.03 OA3G10
OA1G10

DIRECT MOUNT HANDLES

Handle length Weight/unit
Suitable for switches Colour (mm) (kg) Part No.
OTDC100...250 Black 65 0.1 OTDV250EK
OTDC315...800F Black 145 0.33 OTDV400FK2
OTDC1000... Black 274 1.5 OTV1000EK
OTDV400FK2 - Indication Test-Off-On/Test-O-I. Padlockable with three padlocks in Off-Position. Includes shaft and
mechanism cover.
