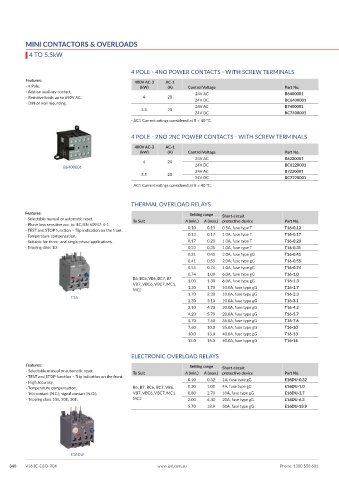

MINI CONTACTORS & OVERLOADS
4 TO 5.5kW

4 POLE - 4NO POWER CONTACTS - WITH SCREW TERMINALS
Features: 400V AC-3 AC-1
- 4 Pole. (kW) (A) Control Voltage Part No.
- Add-on auxiliary contact. 24V AC B6400001
- Resistive loads up to 690V AC. 4 20 24V DC BC6400001
- DIN or wall mounting. B7400001
5.5 20 24V AC
24V DC BC7400001
- AC1 Current ratings considered at θ ≤ 40 °C.

4 POLE - 2NO 2NC POWER CONTACTS - WITH SCREW TERMINALS

400V AC-3 AC-1
(kW) (A) Control Voltage Part No.
24V AC B6220001
4 20
B6400001 24V DC BC6220001
5.5 20 24V AC B7220001
24V DC BC7220001
- AC1 Current ratings considered at θ ≤ 40 °C.

THERMAL OVERLOAD RELAYS
Features: Setting range Short-circuit
- Selectable manual or automatic reset. To Suit A (min.) A (max.) protective device Part No.
- Phase loss sensitive acc. to IEC/EN 60947-4-1. 0.10 0.13 0.5A, fuse type T T16-0.13
- TEST and STOP function – Trip indication on the front.
- Temperature compensation. 0.13 0.17 1.0A, fuse type T T16-0.17
- Suitable for three- and single-phase applications. 0.17 0.23 1.0A, fuse type T T16-0.23
- Tripping class 10. 0.23 0.31 1.0A, fuse type T T16-0.31
0.31 0.41 2.0A, fuse type gG T16-0.41
0.41 0.55 2.0A, fuse type gG T16-0.55
0.55 0.74 4.0A, fuse type gG T16-0.74
0.74 1.00 6.0A, fuse type gG T16-1.0
B6, BC6, VB6, BC7, B7 1.00 1.30 6.0A, fuse type gG T16-1.3
VB7, VBC6, VBC7, MC1,
MC2 1.30 1.70 10.0A, fuse type gG T16-1.7
1.70 2.30 10.0A, fuse type gG T16-2.3
T16
2.30 3.10 10.0A, fuse type gG T16-3.1
3.10 4.20 20.0A, fuse type gG T16-4.2
4.20 5.70 20.0A, fuse type gG T16-5.7
5.70 7.60 35.0A, fuse type gG T16-7.6
7.60 10.0 35.0A, fuse type gG T16-10
10.0 13.0 40.0A, fuse type gG T16-13
13.0 16.0 40.0A, fuse type gG T16-16

ELECTRONIC OVERLOAD RELAYS
Features: Setting range Short-circuit
- Selectable manual or automatic reset. To Suit A (min.) A (max.) protective device Part No.
- TEST and STOP function – Trip indication on the front.
- High accuracy. 0.10 0.32 1A, fuse type gG E16DU-0.32
- Temperature compensation. B6, B7, BC6, BC7, VB6, 0.30 1.00 4A, fuse type gG E16DU-1.0
- Trip contact (N.C.), signal contact (N.O.), VB7, VBC6, VBC7, MC1, 0.80 2.70 10A, fuse type gG E16DU-2.7
- Tripping class 10E, 20E, 30E. MC2 2.00 6.30 20A, fuse type gG E16DU-6.3
5.70 18.9 50A, fuse type gG E16DU-18.9

E16DU
