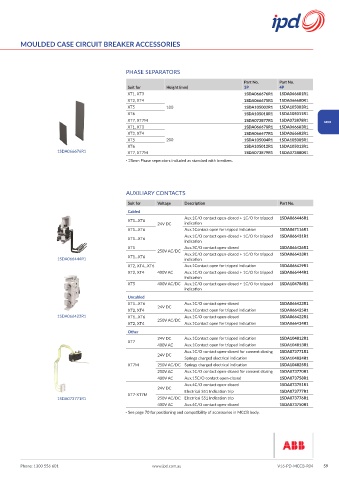

Page 67 - V16 Catalogue Final

MOULDED CASE CIRCUIT BREAKER ACCESSORIES

PHASE SEPARATORS
Part No. Part No.
Suit for Height (mm) 3P 4P
XT1, XT3 1SDA066676R1 1SDA066681R1
XT2, XT4 1SDA066675R1 1SDA066680R1
XT5 100 1SDA105002R1 1SDA105003R1
XT6 1SDA105010R1 1SDA105011R1
XT7, XT7M 1SDA073877R1 1SDA073878R1 MCCB
XT1, XT3 1SDA066678R1 1SDA066683R1
XT2, XT4 1SDA066677R1 1SDA066682R1
XT5 200 1SDA105004R1 1SDA105005R1
XT6 1SDA105012R1 1SDA105013R1
1SDA066676R1 XT7, XT7M 1SDA073879R1 1SDA073880R1
- 25mm Phase seperators included as standard with breakers.

AUXILIARY CONTACTS

Suit for Voltage Description Part No.
Cabled
Aux.1C/O contact open-closed + 1C/O for tripped 1SDA066446R1
XT1...XT6
24V DC indication
XT1...XT6 Aux.1Contact open for tripped indication 1SDA067116R1
Aux.1C/O contact open-closed + 1C/O for tripped 1SDA066431R1
XT1...XT6
indication
XT1 Aux.3C/O contact open-closed 1SDA066426R1
250V AC/DC Aux.2C/O contact open-closed + 1C/O for tripped 1SDA066433R1
1SDA066444R1 XT1...XT6 indication
XT2, XT4...XT6 Aux.1Contact open for tripped indication 1SDA066429R1
XT2, XT4 400V AC Aux.1C/O contact open-closed + 1C/O for tripped 1SDA066444R1
indication
XT5 400V AC/DC Aux.1C/O contact open-closed + 1C/O for tripped 1SDA104784R1
indication
Uncabled
XT1...XT6 24V DC Aux.1C/O contact open-closed 1SDA066423R1
XT2, XT4 Aux.1Contact open for tripped indication 1SDA066425R1
1SDA066422R1 XT1...XT6 Aux.1C/O contact open-closed 1SDA066422R1
XT2, XT4 250V AC/DC Aux.1Contact open for tripped indication 1SDA066424R1
Other
24V DC Aux.1Contact open for tripped indication 1SDA104812R1
XT7
400V AC Aux.1Contact open for tripped indication 1SDA104813R1
Aux.1C/O contact open-closed for consent closing 1SDA073771R1
24V DC
Springs charged electrical indication 1SDA104824R1
XT7M 250V AC/DC Springs charged electrical indication 1SDA104825R1
250V AC Aux.1C/O contact open-closed for consent closing 1SDA073770R1
400V AC Aux.15C/O contact open-closed 1SDA073758R1
Aux.4C/O contact open-closed 1SDA073751R1
24V DC
XT7-XT7M Electrical S51 Indication trip 1SDA073777R1
1SDA073771R1 250V AC/DC Electrical S51 Indication trip 1SDA073776R1
400V AC Aux.4C/O contact open-closed 1SDA073750R1
- See page 70 for positioning and compatibility of accessories in MCCB body.
