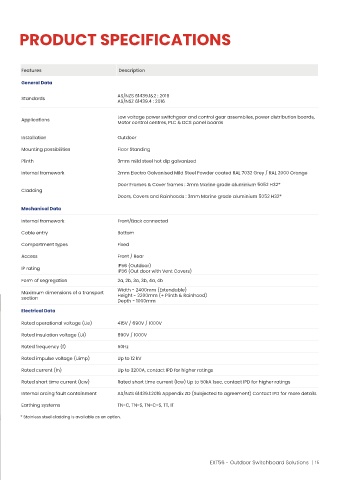

Page 15 - EXT56 OUTDOOR SWITCHBOARD SOLUTIONS

PRODUCT SPECIFICATIONS

Features Description

General Data

AS/NZS 61439.1&2 : 2016
Standards
AS/NSZ 61439.4 : 2016
Low voltage power switchgear and control gear assemblies, power distribution boards,
Applications
Motor control centres, PLC & DCS panel boards

Installation Outdoor
Mounting possibilities Floor Standing

Plinth 3mm mild steel hot dip galvanized

Internal framework 2mm Electro Galvanised Mild Steel Powder coated RAL 7032 Grey / RAL 2000 Orange
Door Frames & Cover frames : 2mm Marine grade aluminium 5052 H32*
Cladding
Doors, Covers and Rainhoods : 3mm Marine grade aluminium 5052 H32*
Mechanical Data

Internal framework Front/Back connected

Cable entry Bottom
Compartment types Fixed

Access Front / Rear
IP56 (Outdoor)
IP rating
IP56 (Out door with Vent Covers)
Form of segregation 2a, 2b, 3a, 3b, 4a, 4b
Width - 2400mm (Extendable)
Maximum dimensions of a transport
section Height - 2200mm (+ Plinth & Rainhood)
Depth - 1000mm
Electrical Data
Rated operational voltage (Ue) 415V / 690V / 1000V

Rated insulation voltage (Ui) 690V / 1000V

Rated frequency (f) 50Hz
Rated impulse voltage (Uimp) Up to 12 kV

Rated current (In) Up to 3200A, contact IPD for higher ratings
Rated short time current (lcw) Rated short time current (lcw) Up to 50kA 1sec, contact IPD for higher ratings

Internal arcing fault containment AS/NZS 61439.1:2016 Appendix ZD (Subjected to agreement) Contact IPD for more details
Earthing systems TN-C, TN-S, TN-C-S, TT, IT

* Stainless steel cladding is available as an option.

EXT56 - Outdoor Switchboard Solutions | 15
