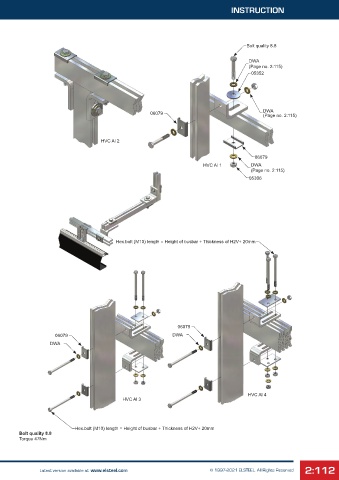

INSTRUCTION
Bolt quality 8.8
DWA
(Page no. 2:115)
05352
DWA
06079
(Page no. 2:115)
HVC Al 2
06079
HVC Al 1 DWA
(Page no. 2:115)
05306
Hex.bolt (M10) length = Height of busbar + Thickness of H2V+ 20mm
06079
06079 DWA
DWA
HVC Al 4
HVC Al 3
Hex.bolt (M10) length = Height of busbar + Thickness of H2V+ 20mm
Bolt quality 8.8
Torque 47Nm
