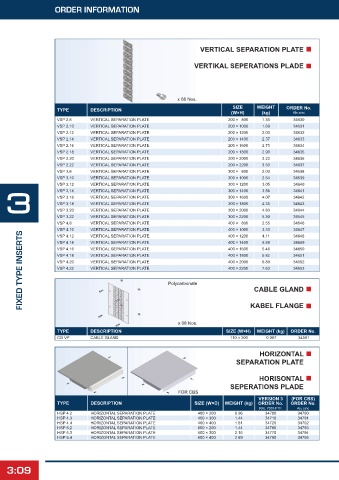

ORDER INFORMATION

VERTICAL SEPARATION PLATE

VERTIKAL SEPERATIONS PLADE

x 08 Nos.
SIZE WEIGHT ORDER No.
TYPE DESCRIPTION
(W×H) (kg) Alu zinc
VSP 2.8 VERTICAL SEPARATION PLATE 200 × 800 1.35 34630
VSP 2.10 VERTICAL SEPARATION PLATE 200 × 1000 1.69 34631
VSP 2.12 VERTICAL SEPARATION PLATE 200 × 1200 2.03 34632
VSP 2.14 VERTICAL SEPARATION PLATE 200 × 1400 2.37 34633
VSP 2.16 VERTICAL SEPARATION PLATE 200 × 1600 2.71 34634
VSP 2.18 VERTICAL SEPARATION PLATE 200 × 1800 2.90 34635
VSP 2.20 VERTICAL SEPARATION PLATE 200 × 2000 3.22 34636
VSP 2.22 VERTICAL SEPARATION PLATE 200 × 2200 3.53 34637
VSP 3.8 VERTICAL SEPARATION PLATE 300 × 800 2.03 34638
VSP 3.10 VERTICAL SEPARATION PLATE 300 × 1000 2.54 34639
VSP 3.12 VERTICAL SEPARATION PLATE 300 × 1200 3.05 34640
VSP 3.14
300 × 1400
3.56
34641
VERTICAL SEPARATION PLATE
3 VSP 3.16 VERTICAL SEPARATION PLATE 300 × 1600 4.07 34642
300 × 1800
34643
4.35
VERTICAL SEPARATION PLATE
VSP 3.18
VSP 3.20
VERTICAL SEPARATION PLATE
5.30
300 × 2200
34645
VSP 3.22 VERTICAL SEPARATION PLATE 300 × 2000 4.83 34644
VSP 4.8 VERTICAL SEPARATION PLATE 400 × 800 2.55 34646
VSP 4.10 VERTICAL SEPARATION PLATE 400 × 1000 3.33 34647
FIXED TYPE INSERTS VSP 4.18 VERTICAL SEPARATION PLATE Polycarbonate 400 × 1800 CABLE GLAND
400 × 1200
VERTICAL SEPARATION PLATE
4.11
34648
VSP 4.12
34649
VSP 4.14
VERTICAL SEPARATION PLATE
4.89
400 × 1400
34650
400 × 1600
5.46
VERTICAL SEPARATION PLATE
VSP 4.16
34651
5.82
VSP 4.20
6.89
VERTICAL SEPARATION PLATE
400 × 2000
34652
7.63
34653
400 × 2200
VERTICAL SEPARATION PLATE
VSP 4.22
x 08 Nos. KABEL FLANGE
TYPE DESCRIPTION SIZE (W×H) WEIGHT (kg) ORDER No.
CG VP CABLE GLAND 110 × 200 0.007 34501
HORIZONTAL
SEPARATION PLATE
HORISONTAL
SEPERATIONS PLADE
FOR CBS
VERSION 3 (FOR CBS)
TYPE DESCRIPTION SIZE (W×D) WEIGHT (kg) ORDER No. ORDER No.
RAL 7035 FTF. Alu zinc
HSP 4.2 HORIZONTAL SEPARATION PLATE 400 × 200 0.96 34700 34790
HSP 4.3 HORIZONTAL SEPARATION PLATE 400 × 300 1.44 34710 34791
HSP 4.4 HORIZONTAL SEPARATION PLATE 400 × 400 1.81 34720 34792
HSP 6.2 HORIZONTAL SEPARATION PLATE 600 × 200 1.44 34760 34793
HSP 6.3 HORIZONTAL SEPARATION PLATE 600 × 300 2.16 34770 34794
HSP 6.4 HORIZONTAL SEPARATION PLATE 600 × 400 2.69 34780 34795
