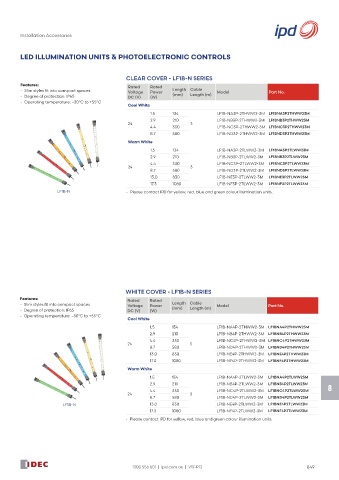

Page 849 - Product Catalog V17 - Flip Book PDF

Installation Accessories

LED ILLUMINATION UNITS & PHOTOELECTRONIC CONTROLS

CLEAR COVER - LF1B-N SERIES
Features: Rated Rated
- Slim styles fit into compact spaces Voltage Power Length Cable Model Part No.
- Degree of protection: IP65 DC (V) (W) (mm) Length (m)
- Operating temperature: –30°C to +55°C
Cool White
1.5 134 LF1B-NA3P-2THWW2-3M LF1BNA3P2THWW23M
2.9 210 LF1B-NB3P-2THWW2-3M LF1BNB3P2THWW23M
24 3
4.4 330 LF1B-NC3P-2THWW2-3M LF1BNC3P2THWW23M
8.7 580 LF1B-ND3P-2THWW2-3M LF1BND3P2THWW23M
Warm White
1.5 134 LF1B-NA3P-2TLWW2-3M LF1BNA3P2TLWW23M
2.9 210 LF1B-NB3P-2TLWW2-3M LF1BNB3P2TLWW23M
4.4 330 LF1B-NC3P-2TLWW2-3M LF1BNC3P2TLWW23M
24 3
8.7 580 LF1B-ND3P-2TLWW2-3M LF1BND3P2TLWW23M
13.0 830 LF1B-NE3P-2TLWW2-3M LF1BNE3P2TLWW23M
17.3 1080 LF1B-NF3P-2TLWW2-3M LF1BNF3P2TLWW23M
LF1B-N - Please contact IPD for yellow, red, blue and green colour illumination units.

WHITE COVER - LF1B-N SERIES
Features: Rated Rated
- Slim styles fit into compact spaces Voltage Power Length Cable Model Part No.
- Degree of protection: IP65 DC (V) (W) (mm) Length (m)
- Operating temperature: –30°C to +55°C
Cool White
1.5 134 LF1B-NA4P-2THWW2-3M LF1BNA4P2THWW23M
2.9 210 LF1B-NB4P-2THWW2-3M LF1BNB4P2THWW23M
4.4 330 LF1B-NC4P-2THWW2-3M LF1BNC4P2THWW23M
24 3
8.7 580 LF1B-ND4P-2THWW2-3M LF1BND4P2THWW23M
13.0 830 LF1B-NE4P-2THWW2-3M LF1BNE4P2THWW23M
17.3 1080 LF1B-NF4P-2THWW2-3M LF1BNF4P2THWW23M
Warm White
1.5 134 LF1B-NA4P-2TLWW2-3M LF1BNA4P2TLWW23M
2.9 210 LF1B-NB4P-2TLWW2-3M LF1BNB4P2TLWW23M
4.4 330 LF1B-NC4P-2TLWW2-3M LF1BNC4P2TLWW23M 8
24 3
8.7 580 LF1B-ND4P-2TLWW2-3M LF1BND4P2TLWW23M
LF1B-N 13.0 830 LF1B-NE4P-2TLWW2-3M LF1BNE4P2TLWW23M
17.3 1080 LF1B-NF4P-2TLWW2-3M LF1BNF4P2TLWW23M
- Please contact IPD for yellow, red, blue and green colour illumination units.
