1/23 ABB MOTOR PROTECTION AND CONTROL
01
—

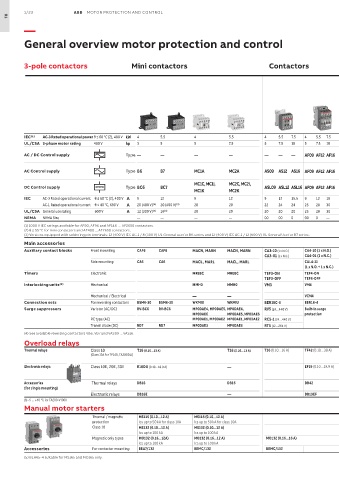

General overview motor protection and control

3-pole contactors Mini contactors Contactors

IEC(1) AC-3 Rated operational power θ ≤ 60 °C (2), 400 V kW 4 5.5 4 5.5 4 5.5 7.5 4 5.5 7.5 11 15 18.5 18.5 22 30 37 45/55 55 75 75 90 110 132 160 200 200 250 315 400 — 475 560 — — —
UL/CSA 3-phase motor rating 480 V hp 3 5 5 7.5 5 7.5 10 5 7.5 10 15 20 25 30 40 50 60 60/75 75 100 100 125 150 200 250 300 350 400 500 600 — 800 900 — — —
AC / DC Control supply Type — — — — — — — AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750AF1250 AF1350 AF1650 AF2050 AF2650 AF2850

AC Control supply Type B6 B7 MC1A MC2A AS09 AS12 AS16 AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750AF1250 AF1350 AF1650 AF2050 AF2650 AF2850

MC1C, MC1I, MC2C, MC2I,
DC Control supply Type BC6 BC7 ASL09 ASL12 ASL16 AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750AF1250 AF1350 AF1650 AF2050 AF2650 AF2850
MC1K MC2K
IEC AC-3 Rated operational current θ ≤ 60 °C (2), 400 V A 9 12 9 12 9 12 15.5 9 12 18 26 32 38 40 53 65 80 96/105 116 140 146 190 205 265 305 370 400 460 580 750 — 860 1060 — — —
AC-1 Rated operational current θ ≤ 40 °C, 690 V A 20 (400 V)(3) 20 (400 V)(3) 20 20 22 24 24 25 28 30 45 50 50 70 100 105 125 130 160 200 225 275 350 400 500 600 600 700 800 1050 1260 1350 1650 2050 2650 2850
UL/CSA General use rating 600 V A 12 (300 V)(3) 16(3) 20 20 20 20 20 25 28 30 45 50 50 60 80 90 105 115 160 200 200 250 300 350 400 520 550 650 750 900 1210 1350 1650 2100 2700 2850
NEMA NEMA Size — — — — 00 00 0 00 0 — 1 — — 2 — — 3 — — 4 — — — 5 — — — 6 — 7 — — 8 — — —
(1) 1000 V IEC ratings available for AF80, AF96 and AF146 … AF2650 contactors.
(2) θ ≤ 55 °C for mini contactors and AF400 ... AF2650 contactors.
(3) Versions equipped with soldering pin terminals: 12 (400 V) IEC AC-1 / 8 (300 V) UL General use for B6 series and 12 (400 V) IEC AC-1 / 12 (600 V) UL General Use for B7 series.
Main accessories
Auxiliary contact blocks Front mounting CAF6 CAF6 MACN, MARN MACN, MARN CA3-10 (1 x N.O.) CA4-10 (1 x N.O.)
CA3-01 (1 x N.C.) CA4-01 (1 x N.C.)
Side mounting CA6 CA6 MACL, MARL MACL, MARL CAL4-11 CAL19-11 (1 x N.O. + 1 x N.C.) CAL18-11 (1 x N.O. + 1 x N.C.)
(1 x N.O. + 1 x N.C.)
Timers Electronic MREBC MREBC TEF3-ON TEF4-ON
TEF3-OFF TEF4-OFF
Interlocking units(4) Mechanical MMH0 MMH0 VM3 VM4 VM96-4 VM19 (for same size contactors) VM750H VM1650H
VM750V
Mechanical / Electrical — — VEM4
Connection sets For reversing contactors BSM6-30 BSM6-30 WKMIU WKMIU BER16C-3 BER16-4 BER38-4 BER65-4 BER96-4 BER140-4 BER205-4 BER370-4 BEM460-30 BEM750-30
Surge suppressors Varistor (AC/DC) RV-BC6 RV-BC6 MP0DAE4, MP0DAE5, MP0DAE4, RV5 (24…440 V) Built-in surge
MP0DAE6 MP0DAE5, MP0DAE6 protection
RC type (AC) MP0DAE1, MP0DAE2 MP0DAE1, MP0DAE2 RC5-1 (24…440 V)
Transil diode (DC) RD7 RD7 MP0DAE3 MP0DAE3 RT5 (12…264 V)
(4) See available reversing contactors VB6, VB7 and VAS09 ... VAS16.
Overload relays
Thermal relays Class 10 T16 (0.10…13 A) T16 (0.10…13 A) T16 (0.10…16 A) TF42 (0.10…38 A) TF65 (22...67 A) TF96 TF140DU TA200DU
(Class 10A for TF140, TA200DU) (40...96 A) (66...142 A) (66...200 A)
θ ≤ 55 °C (⁶)θ ≤ 55 °C
Electronic relays Class 10E, 20E, 30E E16DU (0.10…18.9 A) — EF19 (0.10…18.9 A) EF19 (0.10…18.9 EF65 (20...70 A) EF96 EF146 EF205 EF370 (115...380 A) EF460 EF750 EF1250DU
A) (20...100 A) (54...150 A) (63...210 A) (150…500 A) (250…800 A) (350…1250 A)
EF45 (9…45 A)
Accessories Thermal relays DB16 DB16 DB42 DB65 DB96 DB200
(for single mounting) (only for TF65)
Electronic relays DB16E — DB19EF DB45EF DB96
(6) -5 ... +40 °C for TA200-V1000
Manual motor starters

Thermal / magnetic MS116 (0.10…12 A) MS116 (0.10...12 A) MS165 (10...80 A)
protection Ics up to 50 kA for class 10A lcs up to 50 kA for class 10A lcs up to 100 kA
Class 10 MS132 (0.10…12 A) MS132 (0.10...12 A) MO165 (16...80 A)
Ics up to 100 kA lcs up to 100 kA lcs up to 100 kA
Magnetic only types MO132 (0.16...12A) MO132 (0.16...12 A) MO132 (0.16...16 A) MO165 (16...80 A)
Ics up to 100 kA Ics up to 100 kA lcs up to 100 kA
Accessories For contactor mounting BEA7/132 BEMC/132 BEMC/132 BEA65-4(5)
(5) BEA65-4 suitable for MS165 and MO165 only.
