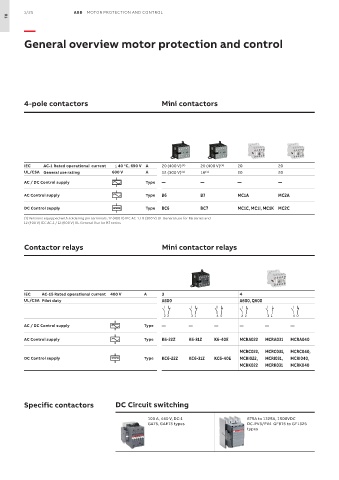

1/25 ABB MOTOR PROTECTION AND CONTROL
01
—

General overview motor protection and control

4-pole contactors Mini contactors Contactors

IEC AC-1 Rated operational current θ ≤ 40 °C, 690 V A 20 (400 V)(1) 20 (400 V)(1) 20 20 25 30 45 55 70 100 125 160 200 275 350 400 500 525 800 1000
UL/CSA General use rating 600 V A 12 (300 V)(1) 16(1) 20 20 25 30 45 55 60 80 105 160 175 230 250 300 350 420 540 —
AC / DC Control supply Type — — — — AF09 AF16 AF26 AF38 AF40 AF52 AF80 AF116 AF140 AF190 AF205 AF265 AF305 AF370 — —

AC Control supply Type B6 B7 MC1A MC2A AF09 AF16 AF26 AF38 AF40 AF52 AF80 AF116 AF140 AF190 AF205 AF265 AF305 AF370 EK550 EK1000

DC Control supply Type BC6 BC7 MC1C, MC1I, MC1K MC2C AF09 AF16 AF26 AF38 AF40 AF52 AF80 AF116 AF140 AF190 AF205 AF265 AF305 AF370 EK550 EK1000
(1) Versions equipped with soldering pin terminals: 12 (400 V) IEC AC-1 / 8 (300 V) UL General use for B6 series and
12 (400 V) IEC AC-1 / 12 (600 V) UL General Use for B7 series

Contactor relays Mini contactor relays Contactor relays

IEC AC-15 Rated operational current 400 V A 3 4 3 3
UL/CSA Pilot duty A600 A600, Q600 A600, Q300 A600, Q600

2 2 3 1 4 0 2 2 3 1 4 0 2 2 3 1 4 0 2 2 3 1 4 0
AC / DC Control supply Type — — — — — — — — — NF22E NF31E NF40E

AC Control supply Type K6-22Z K6-31Z K6-40E MCRA022 MCRA031 MCRA040 NS22E NS31E NS40E NF22E NF31E NF40E
MCRC022, MCRC031, MCRC040,
DC Control supply Type KC6-22Z KC6-31Z KC6-40E MCRI022, MCRI031, MCRI040, NSL22E NSL31E NSL40E NF22E NF31E NF40E
MCRK022 MCRK031 MCRK040

Specific contactors DC Circuit switching Capacitor switching

100 A, 440 V, DC-1 875A to 1325A, 1500VDC 12.5 to 80 kvar
GA75, GAE75 types DC-PV3/PV4 GF875 to GF1325 UA16..RA to UA110..RA types
types UA16 to UA110 types
