3/164 ABB MOTOR PROTECTION AND CONTROL

—

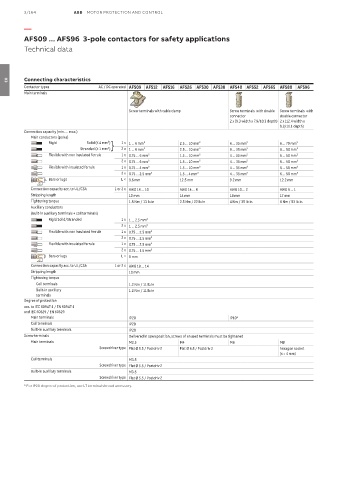

AFS09 ... AFS96 3-pole contactors for safety applications
Technical data

Connecting characteristics
03
Contactor types AC / DC operated AFS09 AFS12 AFS16 AFS26 AFS30 AFS38 AFS40 AFS52 AFS65 AFS80 AFS96
Main terminals

Screw terminals with cable clamp Screw terminals with double Screw terminals with
connector double connector
2 x (9.3 width x 7.9/10.3 depth) 2 x (12.4 width x
9.3/11.1 depth)
Connection capacity (min. ... max.)
Main conductors (poles)
Stranded (≥ 1 mm²)} 2 x 1 ... 6 mm² 2.5 ... 10 mm² 6 ... 35 mm² 6 ... 50 mm²
Rigid Solid (≤ 4 mm²) 1 x 1 ... 6 mm² 2.5 ... 10 mm² 6 ... 35 mm² 6 ... 70 mm²
Flexible with non insulated ferrule 1 x 0.75 ... 6 mm² 1.5 ... 10 mm² 4 ... 35 mm² 6 ... 50 mm²
2 x 0.75 ... 6 mm² 1.5 ... 10 mm² 4 ... 35 mm² 6 ... 50 mm²
Flexible with insulated ferrule 1 x 0.75 ... 4 mm² 1.5 ... 10 mm² 4 ... 35 mm² 6 ... 50 mm²
2 x 0.75 ... 2.5 mm² 1.5 ... 4 mm² 4 ... 35 mm² 6 ... 50 mm²
L Bars or lugs L < 9.6 mm 12.5 mm 9.2 mm 12.2 mm
6
Connection capacity acc. to UL/CSA 1 or 2 x AWG 16 ... 10 AWG 14 ... 8 AWG 10 ... 2 AWG 6 ... 1
Stripping length 10 mm 14 mm 16 mm 17 mm
Tightening torque 1.5 Nm / 13 lb.in 2.5 Nm / 22 lb.in 4 Nm / 35 lb.in 6 Nm / 53 lb.in
Auxiliary conductors
(built-in auxiliary terminals + coil terminals)
Rigid Solid/Stranded 1 x 1 ... 2.5 mm²
2 x 1 ... 2.5 mm²
Flexible with non insulated ferrule 1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Flexible with insulated ferrule 1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 1.5 mm²
L Bars or lugs L < 8 mm
6
Connection capacity acc. to UL/CSA 1 or 2 x AWG 18 ... 14
Stripping length 10 mm
Tightening torque
Coil terminals 1.2 Nm / 11 lb.in
Built-in auxiliary 1.2 Nm / 11 lb.in
terminals
Degree of protection
acc. to IEC 60947-1 / EN 60947-1
and IEC 60529 / EN 60529
Main terminals IP20 IP10*
Coil terminals IP20
Built-in auxiliary terminals IP20
Screw terminals Delivered in open position, screws of unused terminals must be tightened
Main terminals M3.5 M4 M6 M8
Screwdriver type Flat Ø 5.5 / Pozidriv 2 Flat Ø 6.5 / Pozidriv 2 hexagon socket
(s = 4 mm)
Coil terminals M3.5
Screwdriver type Flat Ø 5.5 / Pozidriv 2
Built-in auxiliary terminals M3.5
Screwdriver type Flat Ø 5.5 / Pozidriv 2
* For IP20 degree of protection, use LT terminal shroud accessory.
