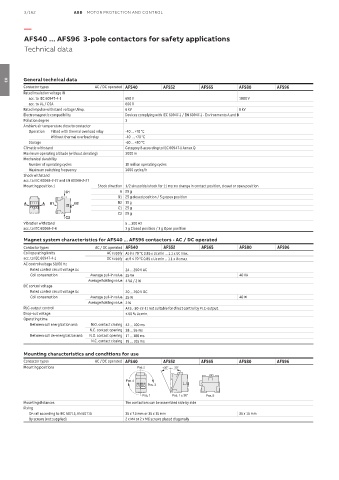

3/162 ABB MOTOR PROTECTION AND CONTROL

—

AFS40 ... AFS96 3-pole contactors for safety applications
Technical data

General technical data
03
Contactor types AC / DC operated AFS40 AFS52 AFS65 AFS80 AFS96
Rated insulation voltage Ui
acc. to IEC 60947-4-1 690 V 1000 V
acc. to UL / CSA 600 V
Rated impulse withstand voltage Uimp. 6 kV 8 kV
Electromagnetic compatibility Devices complying with IEC 60947-1 / EN 60947-1 - Environments A and B
Pollution degree 3
Ambient air temperature close to contactor
Operation Fitted with thermal overload relay -40 ... +70 °C
Without thermal overload relay -40 ... +70 °C
Storage -60 ... +80 °C
Climatic withstand Category B according to IEC 60947-1 Annex Q
Maximum operating altitude (without derating) 3000 m
Mechanical durability
Number of operating cycles 10 million operating cycles
Maximum switching frequency 3600 cycles/h
Shock withstand
acc. to IEC 60068-2-27 and EN 60068-2-27
Mounting position 1 Shock direction 1/2 sinusoidal shock for 11 ms: no change in contact position, closed or open position
C1 A 25 g
B1 25 g closed position / 5 g open position
A A B1 B2 B2 15 g
C1 25 g
C2 25 g
C2
Vibration withstand 5 ... 300 Hz
acc. to IEC 60068-2-6 3 g Closed position / 3 g Open position
Magnet system characteristics for AFS40 ... AFS96 contactors - AC / DC operated
Contactor types AC / DC operated AFS40 AFS52 AFS65 AFS80 AFS96
Coil operating limits AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max.
acc. to IEC 60947-4-1 DC supply at θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
AC control voltage 50/60 Hz
Rated control circuit voltage Uc 24 ... 250 V AC
Coil consumption Average pull-in value 25 VA 40 VA
Average holding value 4 VA / 2 W
DC control voltage
Rated control circuit voltage Uc 20 ... 250 V DC
Coil consumption Average pull-in value 25 W 40 W
Average holding value 2 W
PLC-output control AFS..-30-22-11 not suitable for direct control by PLC-output.
Drop-out voltage ≤ 60 % Uc min.
Operating time
Between coil energization and: N.O. contact closing 42 ... 100 ms
N.C. contact opening 38 ... 95 ms
Between coil de-energization and: N.O. contact opening 17 ... 100 ms
N.C. contact closing 19 ... 105 ms

Mounting characteristics and conditions for use
Contactor types AC / DC operated AFS40 AFS52 AFS65 AFS80 AFS96
Mounting positions Pos. 2 +30° -30°

Pos. 4
Pos. 3

Pos. 1 Pos. 1 ± 30° Pos. 5
Mounting distances The contactors can be assembled side by side
Fixing
On rail according to IEC 60715, EN 60715 35 x 7.5 mm or 35 x 15 mm 35 x 15 mm
By screws (not supplied) 2 x M4 or 2 x M6 screws placed diagonally
