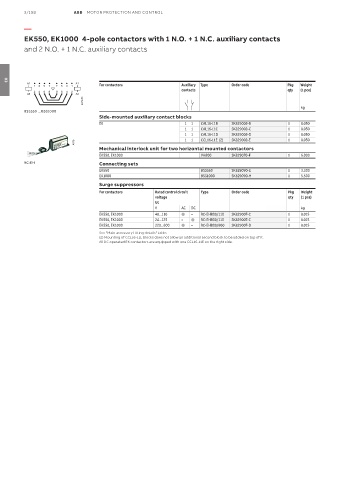

3/198 ABB MOTOR PROTECTION AND CONTROL

—

EK550, EK1000 4-pole contactors with 1 N.O. + 1 N.C. auxiliary contacts
and 2 N.O. + 1 N.C. auxiliary contacts

A1 A1 For contactors Auxiliary Type Order code Pkg Weight
03
1 3 5 7 7 5 3 1
contacts qty (1 pce)
2 4 6 8 8 6 4 2
A2 A2
E0747D
kg
BSS550 ... BSS1000
Side-mounted auxiliary contact blocks
EK 1 1 CAL16-11B SK829002-B 1 0.050
1 1 CAL16-11C SK829002-C 1 0.050
1 1 CAL16-11D SK829002-D 1 0.050
1 1 CCL16-11E (2) SK829002-E 1 0.050
A078
Mechanical interlock unit for two horizontal mounted contactors
EK550, EK1000 VH800 SK829070-F 1 6.000
RC-EH Connecting sets
EK550 BSS550 SK829090-E 1 3.300
EK1000 BSS1000 SK829090-H 1 5.500
Surge suppressors
For contactors Rated control circuit Type Order code Pkg Weight
voltage qty (1 pce)
Uc
V AC DC kg
EK550, EK1000 48...110 – RC-EH800/110 SK829007-C 1 0.015
EK550, EK1000 24...125 – RC-EH800/110 SK829007-C 1 0.015
EK550, EK1000 220...600 – RC-EH800/600 SK829007-D 1 0.015
See "Main accessory fitting details" table.
(2) Mounting of CCL16-11E blocks does not allow an additional second block to be added on top of it.
All DC operated EK contactors are equipped with one CCL16-11E on the right side.
