3/194 ABB MOTOR PROTECTION AND CONTROL

—

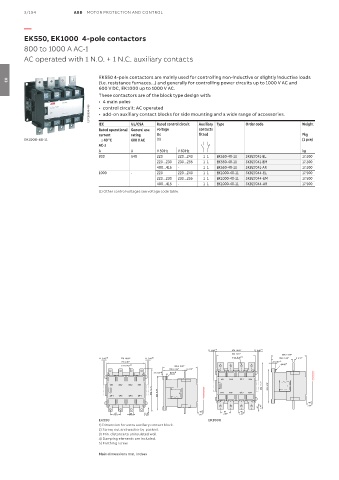

EK550, EK1000 4-pole contactors

800 to 1000 A AC-1
AC operated with 1 N.O. + 1 N.C. auxiliary contacts

EK550 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and generally for controlling power circuits up to 1000 V AC and
03
600 V DC, EK1000 up to 1000 V AC.
These contactors are of the block type design with:
• 4 main poles
1SFC98099-069 • control circuit: AC operated
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.

IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts
current rating Uc fitted Pkg
EK1000-40-11 θ ≤ 40 °C 600 V AC (1) (1 pce)
AC-1
A A V 50 Hz V 60 Hz kg
800 540 220 220…240 1 1 EK550-40-11 SK827041-EL 17.200
220…230 230…255 1 1 EK550-40-11 SK827041-EM 17.200
400…415 - 1 1 EK550-40-11 SK827041-AR 17.200
1000 - 220 220…240 1 1 EK1000-40-11 SK827044-EL 17.500
220…230 230…255 1 1 EK1000-40-11 SK827044-EM 17.500
400…415 - 1 1 EK1000-40-11 SK827044-AR 17.500
(1) Other control voltages see voltage code table.

11 0.43" 1) 270 10.63" 11 0.43" 1)
244 9.61" 225.5 8.88"
11 0.43" 1) 270 10.63" 11 0.43" 1) ø 11 0.43" 2) 139.5 5.49" 8 0.31"
244 9.61" 23 0.91" 4)
ø 11 0.43" 2) 225.5 8.88" (M10) 5)
139.5 5.49" 6 0.24"
23 0.91" 4) (M10) 5)
1/L1 3/L2 5/L3 7/L4
1/L1 3/L2 5/L3 7/L4 299 11.77" 223 8.78"
272 10.71" 6/T3
2/T1 4/T2 6/T3 8/T4 223 8.78" 2/T1 4/T2 8/T4
40 3)
20 0.79" 1.57"
40 3) 67 40
67 25 12.5 2.64" 1.57"
2.64" 0.98" 0.49" 1.57"
EK550 EK1000
1) Dimension for extra auxiliary contact block.
2) Screw, nut and washer by-packed.
3) Min. distance to uninsulated wall.
4) Damping elements are included.
5) Earthing screw.
Main dimensions mm, inches
