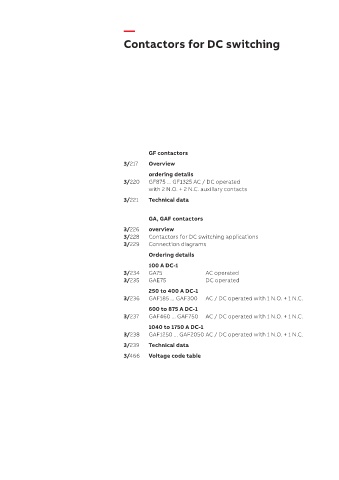

Contactors for DC switching

GF contactors
3/217 Overview
ordering details
3/220 GF875 ... GF1325 AC / DC operated
with 2 N.O. + 2 N.C. auxiliary contacts
3/221 Technical data

GA, GAF contactors

3/226 overview
3/228 Contactors for DC switching applications
3/229 Connection diagrams
Ordering details
100 A DC-1
3/234 GA75 AC operated
3/235 GAE75 DC operated
250 to 400 A DC-1
3/236 GAF185 ... GAF300 AC / DC operated with 1 N.O. + 1 N.C.
600 to 875 A DC-1
3/237 GAF460 ... GAF750 AC / DC operated with 1 N.O. + 1 N.C.
1040 to 1750 A DC-1
3/238 GAF1250 ... GAF2050 AC / DC operated with 1 N.O. + 1 N.C.
3/239 Technical data
3/466 Voltage code table
