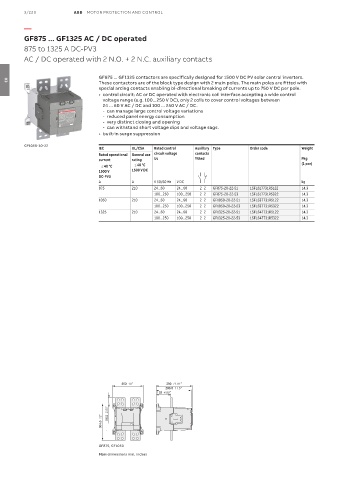

3/220 ABB MOTOR PROTECTION AND CONTROL

—
GF875 ... GF1325 AC / DC operated

875 to 1325 A DC-PV3
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

GF875 ... GF1325 contactors are specifically designed for 1500 V DC PV solar central inverters.
These contactors are of the block type design with 2 main poles. The main poles are fitted with
03
special arcing contacts enabling bi-directional breaking of currents up to 750 V DC per pole.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control
voltage range (e.g. 100...250 V DC), only 2 coils to cover control voltages between
24 ... 60 V AC / DC and 100 ... 250 V AC / DC.
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags.
• built-in surge suppression

GF1050-30-22
IEC UL/CSA Rated control Auxiliary Type Order code Weight
Rated operational General use circuit voltage contacts
current rating Uc fitted Pkg
θ ≤ 40 °C θ ≤ 40 °C (1 pce)
1500 V 1500 V DC
DC-PV3
A A V 50/60 Hz V DC kg
875 210 24...60 24...60 2 2 GF875-20-22-51 1SFL617731R5122 14.3
100...250 100...250 2 2 GF875-20-22-53 1SFL617731R5322 14.3
1050 210 24...60 24...60 2 2 GF1050-20-22-51 1SFL637731R5122 14.3
100...250 100...250 2 2 GF1050-20-22-53 1SFL637731R5322 14.3
1325 210 24...60 24...60 2 2 GF1325-20-22-51 1SFL647731R5122 14.3
100...250 100...250 2 2 GF1325-20-22-53 1SFL647731R5322 14.3

253 10" 300 11.81"
290.5 11.5"
122 4.80"

50.5 2.00"
304.5 12"

GF875, GF1050
Main dimensions mm, inches
